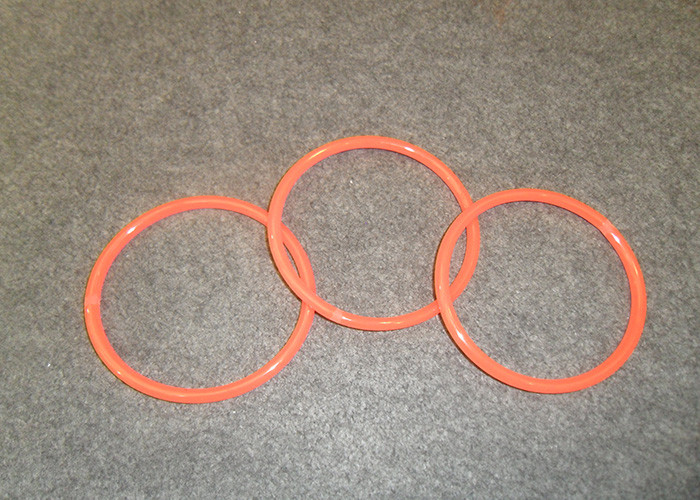

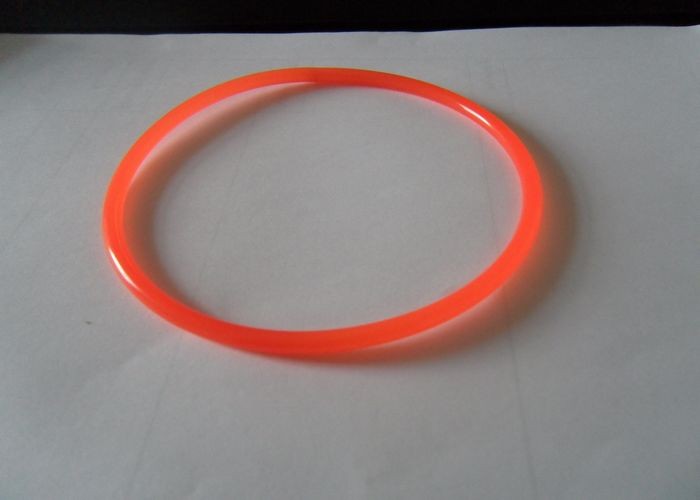

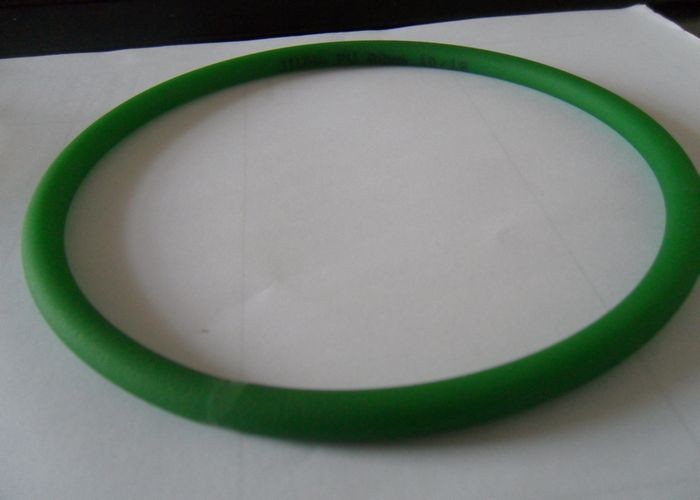

Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm

Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm
Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm

Hình ảnh lớn :  Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Jiuna
Chứng nhận: ROHS
Model Number: Diameter 2mm~20mm
Thanh toán:
Minimum Order Quantity: 500piece
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 6000 piece per Month
Chi tiết sản phẩm
Material: PU color: orange or green
hardness: 85A-90A diameter: 2mm-20mm
surface: smooth or rough Elongation: 550%-650%
Tensile: 45Mpa
Điểm nổi bật:

pu extruded belt

,

green round belt

Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm
PU O-ring Feature :

1.  High tensile strength

2.  Excellent abrasion resistance

3.  Good resistance to fuel , oils and oxygen ,

4. It’s not easy to be broken at low temperature .



PU Jointless O-ring Application :

1. Used in sealing industrial for O-ring

2.  printing and packing machine ,

3.  food & beverage processing,

4. wood processing ,

5. paper processing ,

6. electronic ,

7. post service ,

 8. tobacco transmission line ,

 9. Wall floor tile conveying industrial line ,

10.ceramic industry line or polishing line .



Rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance, easy jointed and Other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7)V-belt Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm 0Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm 1Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm 2Sealing Industrial Conveying Polyurethane Round Belt PU O-ring 10*1040mm 3
