| material: | PU ,TPU | type: | PU round belt |
|---|---|---|---|
| surface: | smooth | hardness: | 90A |
| Standard or Nonstandard: | Standard | heat-resistant: | -30 ℃~+80℃ |
| Điểm nổi bật: | pu round belt,green round belt |
||

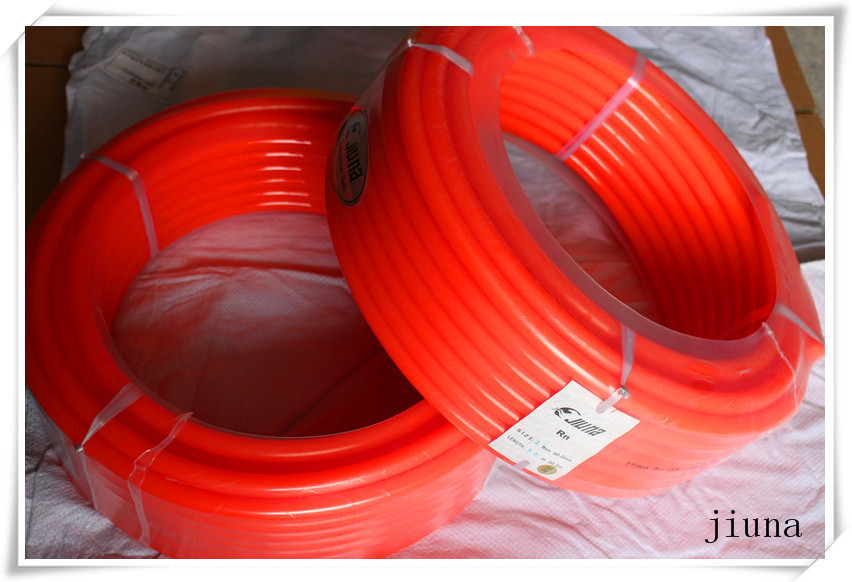

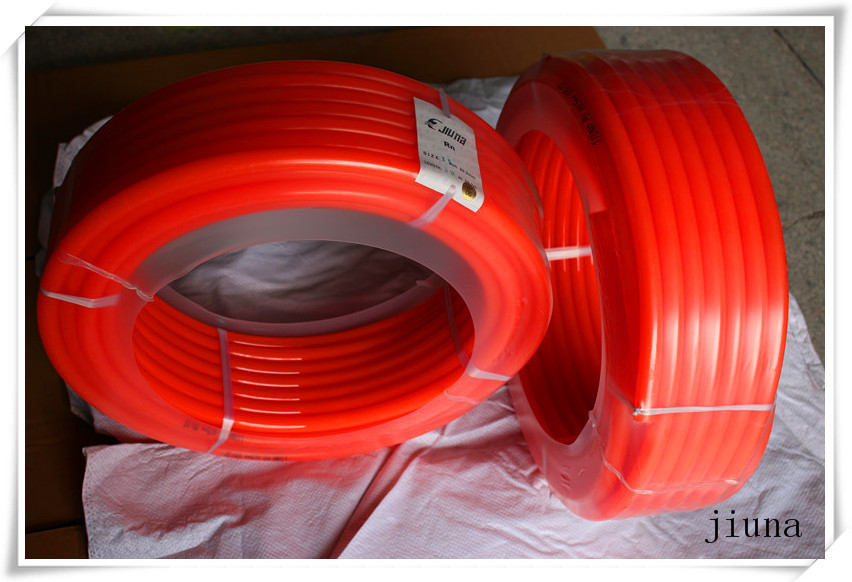

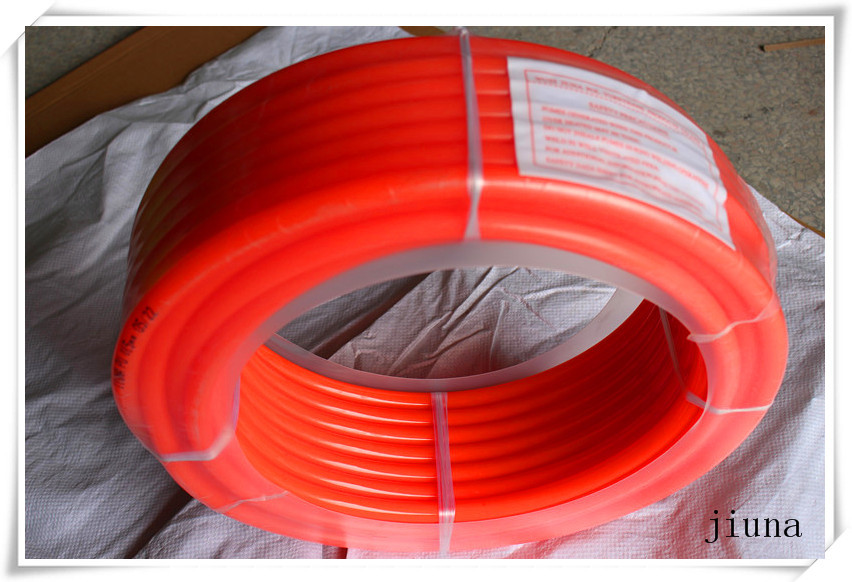

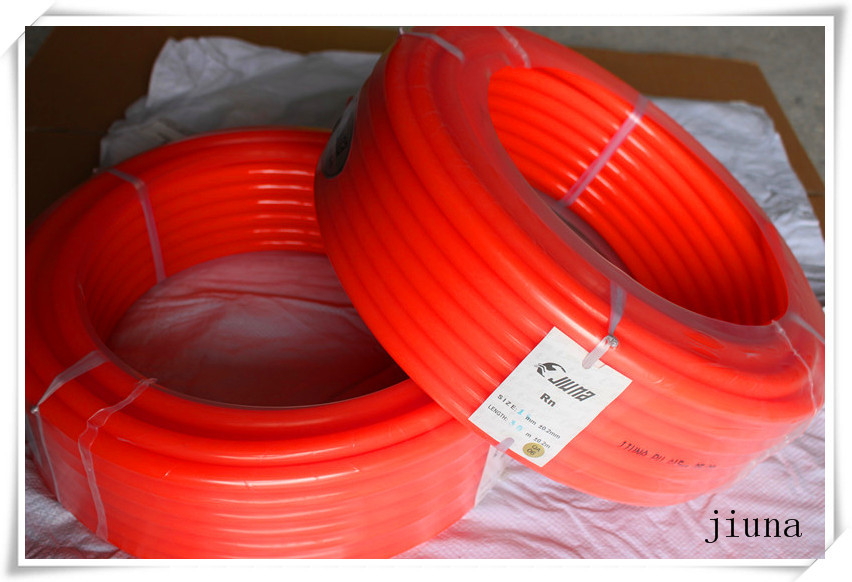

Diameter 2mm - 20mm Polyurethane Round Belt With Wear - Resistance , 90a Hardness
Polyurethane Round Belt
Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
a: diameter: 2mm--30mm
b: surface: vivid
Polyurethane belting of introduction:
Special color round belt can be custom-made ,
Yellow and blue pearl round belt applied to sports leisure fitness industrial like skipping rope.
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.Polyester product
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
