High hardness Polyurethane Round Belt 85A - 90A For Textile industry

Trung Quốc Wuxi Jiunai Polyurethane Products Co., Ltd Chứng chỉ
Trung Quốc Wuxi Jiunai Polyurethane Products Co., Ltd Chứng chỉ
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

Tôi trò chuyện trực tuyến bây giờ

High hardness Polyurethane Round Belt 85A - 90A For Textile industry

High hardness Polyurethane Round Belt 85A - 90A For Textile industry
High hardness Polyurethane Round Belt 85A - 90A For Textile industry High hardness Polyurethane Round Belt 85A - 90A For Textile industry High hardness Polyurethane Round Belt 85A - 90A For Textile industry High hardness Polyurethane Round Belt 85A - 90A For Textile industry

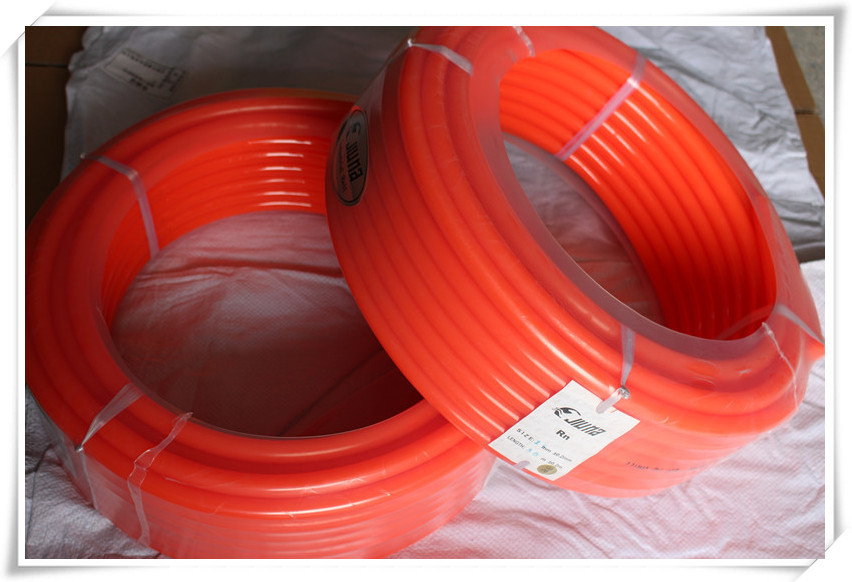

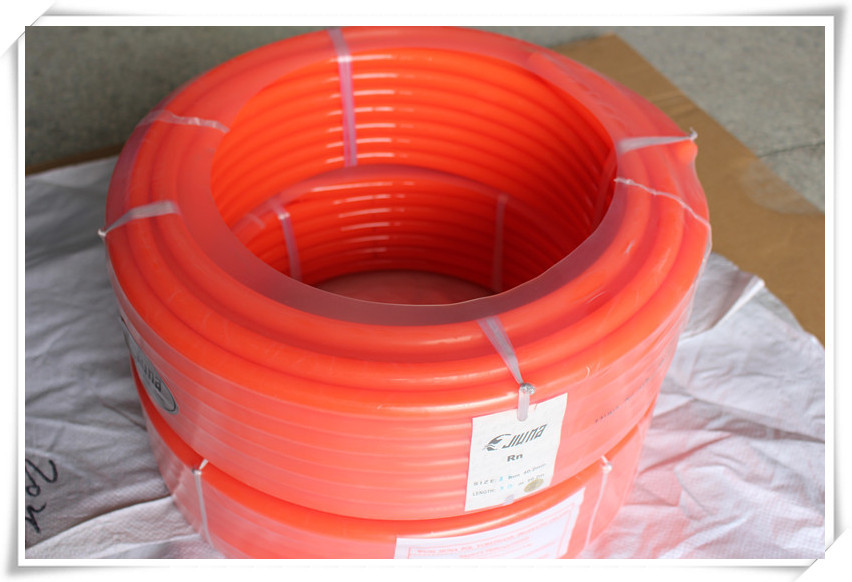

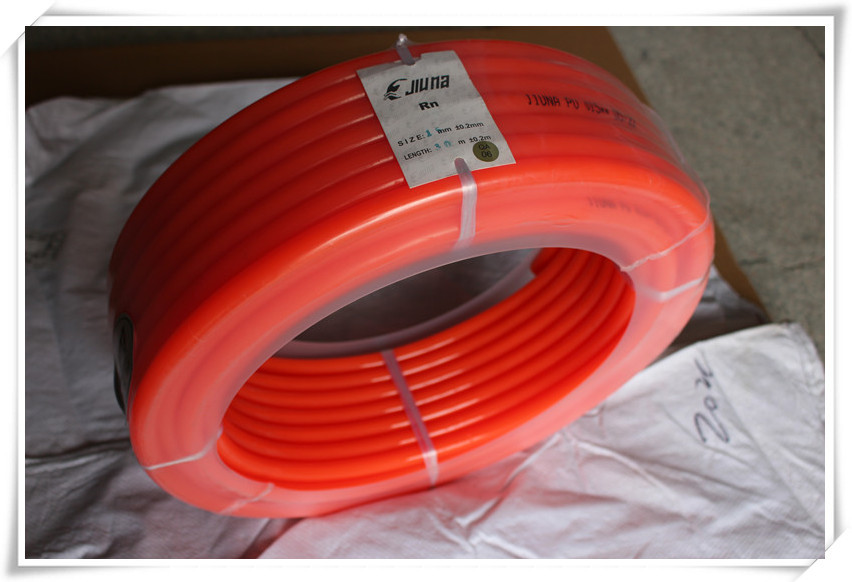

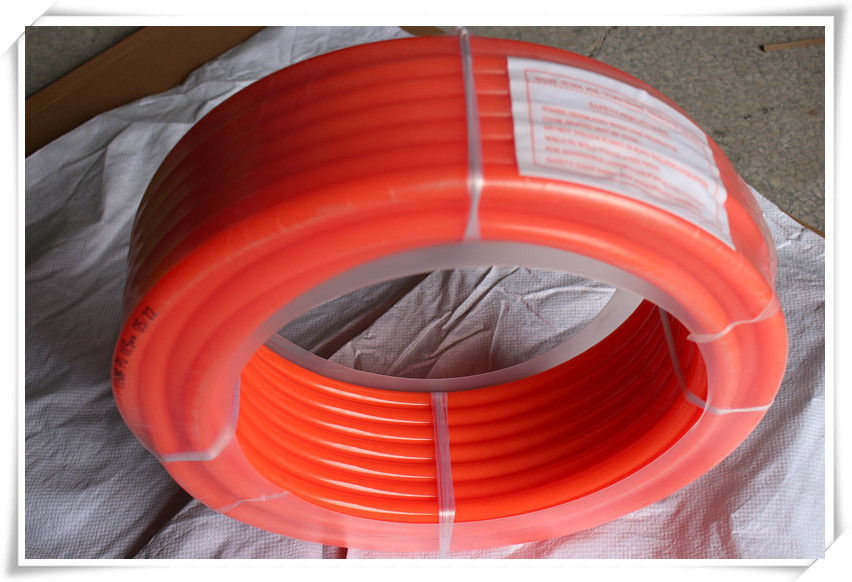

Hình ảnh lớn :  High hardness Polyurethane Round Belt 85A - 90A For Textile industry

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: jiuna
Chứng nhận: ROHS
Model Number: Diameter 2mm~20mm
Thanh toán:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Chi tiết sản phẩm
color: red material: 100% TPU
longth: 300m/roll 200m/roll 100m/roll 50m/roll 30m/roll hardness: 85A-90A
type: PU smooth round belt
Điểm nổi bật:

pu round belt

,

pu extruded belt

    High hardness Polyurethane Round Belt 85A - 90A For Textile industry
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.


Transmission purposes of textile machines, packaging machines, printing presses, food machinery, industrial and paper equipments. Cut round belts can be joined as the endless belts as required according to the drive wheel distance and pulley size.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30




High hardness Polyurethane Round Belt 85A - 90A For Textile industry 0High hardness Polyurethane Round Belt 85A - 90A For Textile industry 1
