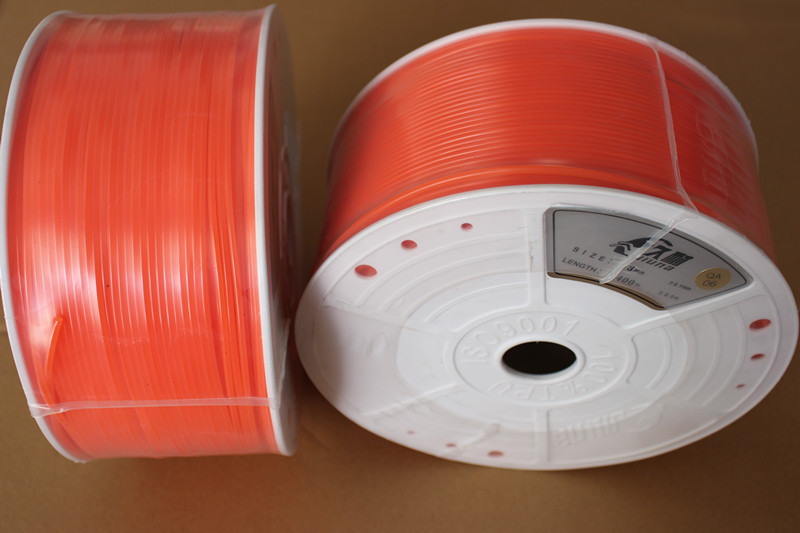

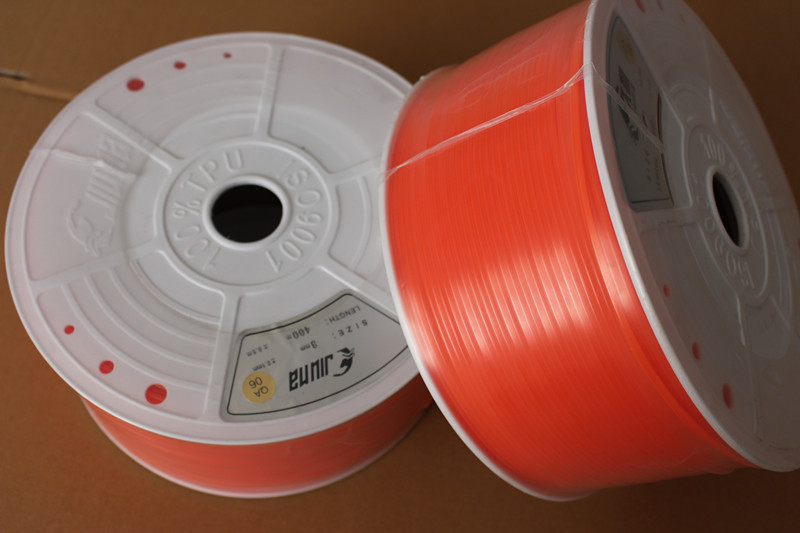

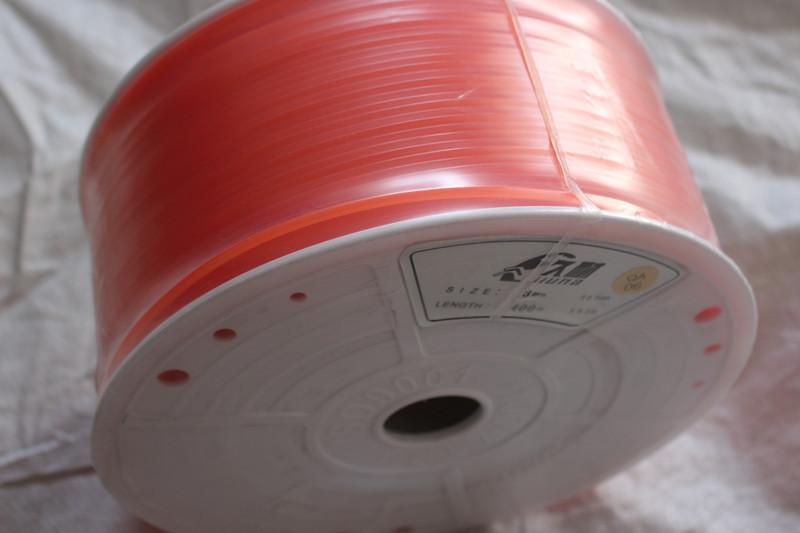

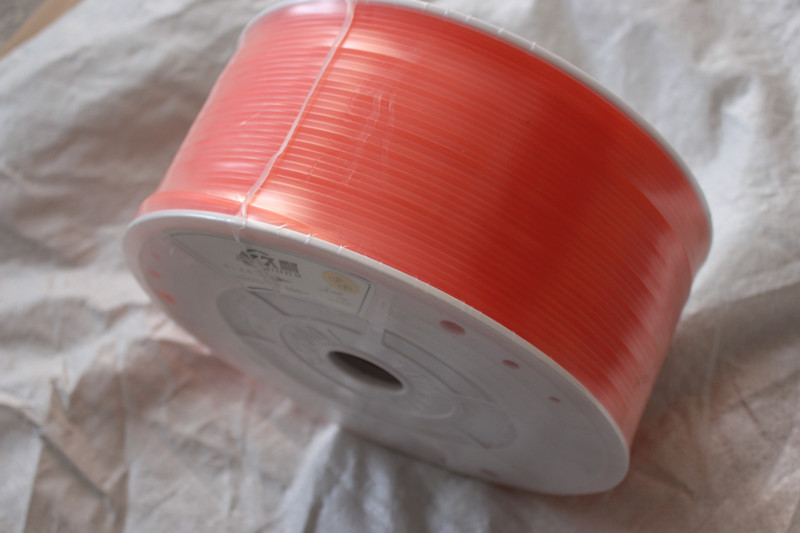

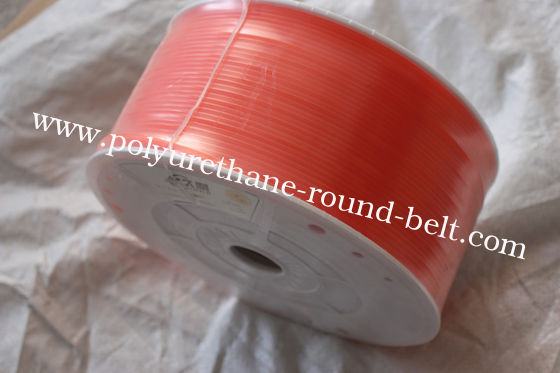

Low compression Polyurethane Round Belt / Smooth Round Drive Belts
| Place of Origin | China |
|---|---|
| Hàng hiệu | Jiuna |
| Chứng nhận | ROHS |
| Model Number | Diameter 2~20 mm |
| Minimum Order Quantity | 1000 meters |
| Packaging Details | Inner packing is plastic film .outer packing is carton . |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96.000 meters per Month |
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| material | PU | hardness | 85A-90A |
|---|---|---|---|
| surface | smooth | color | orange |
| Tensile Strength | 55N/mm2 | type | PU round belt |
| Character | Heat resistance | ||
| Làm nổi bật | pu extruded belt,green round belt |
||
Mô tả sản phẩm
Polyurethane belting of introduction:
We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers,kelver,steel cord. Also can joint belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , including clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
Service commitment:
“Quality for keeping going ,Credit to win the world”
