| tensile rate: | 0.3kg-31.3kg | color: | green or as your require |
|---|---|---|---|
| stretching rate: | 1.5%-3% | material: | PU |
| longth: | 400m/roll 200m/roll 100m/roll 30m/roll | hardness: | 85A-90A |
| Điểm nổi bật: | pu round belt,pu extruded belt |
||

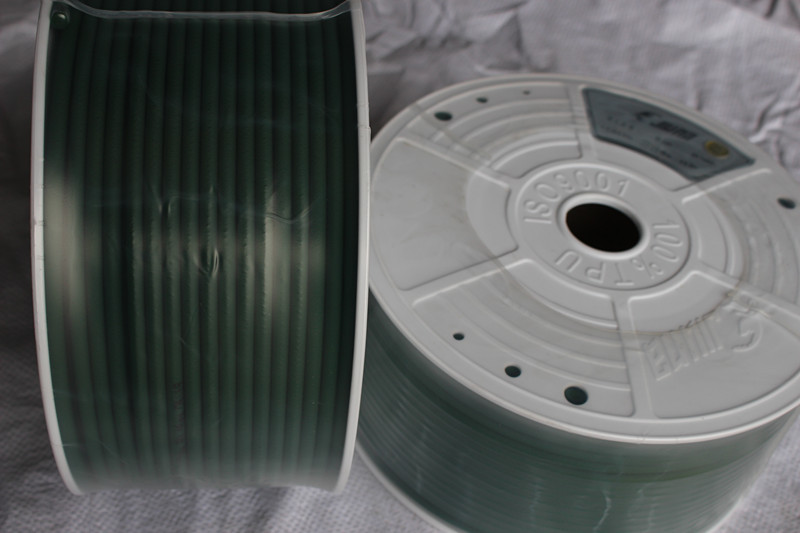

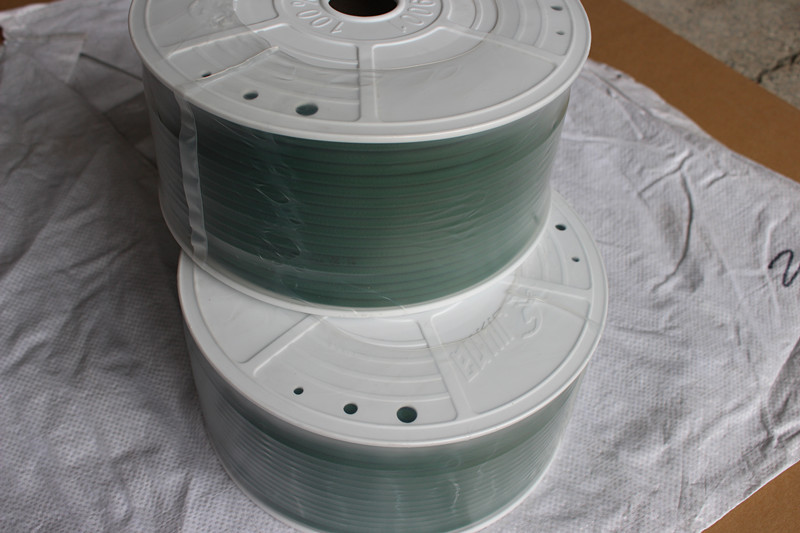

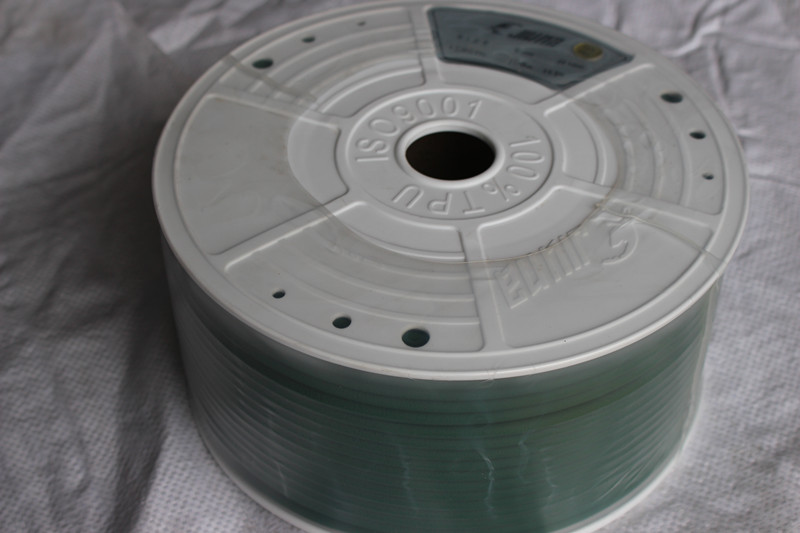

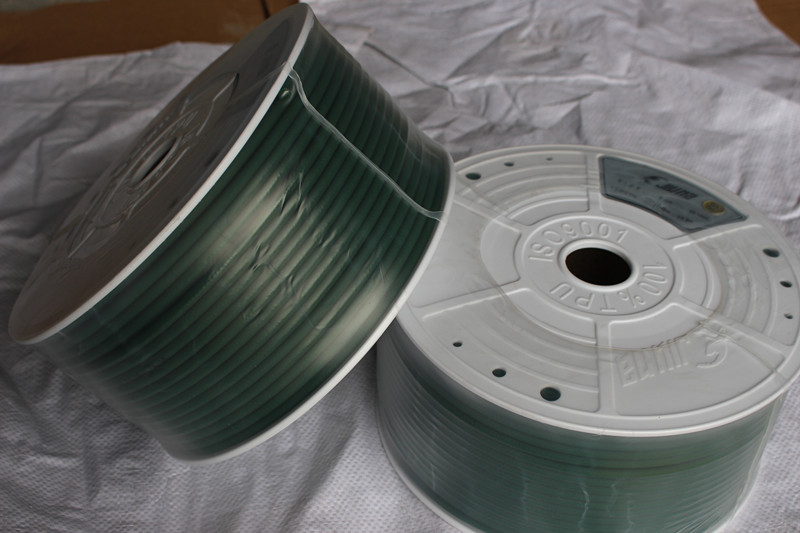

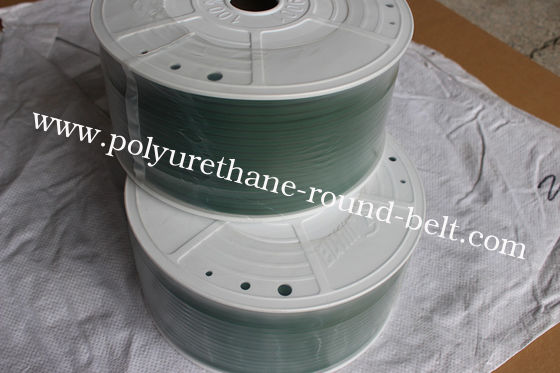

Conveyor High Density Polyurethane Round Belt Wear Resistant
Detailed Product Description:
PU Cord Belt Application :
(1) printing and packing machine
(2) food & beverage processing
(3) wood processing
(4) paper processing
(5) electronic
(6) post service
(7) tobacco transmission line
PU Cord Properties :
(1)Excellent abrasion resistance.
(2)Good resistance to fuel , oils and oxygen.
(3)Contains no plasticizer.
(4)Wide application temperature from -30℃~+80℃
Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel.cpu pouring product characteristics and main performance are: wear-resisting.oil,acid and alkali resistance,solvent resistance,ozone resistance,aging resistance,environmental protection,non-toxic,the main products are rubber roller plastic bags,plastic core package iron roller,printing and dyeing,etc.,and can undertake various non-standard parts processing,customized non-standard products can be according to the drawing,plastic,iron core production in a body.
transmission Round Belting :
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 2 | 0.79 | 20 mm | 1.5-3% | 0.3 | 0.7 | 90 | 400 |
| 3 | 0.98 | 25 mm | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 4 | 1.38 | 35 mm | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5 | 1.57 | 40 mm | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6 | 1.97 | 50 mm | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7 | 2.17 | 55 mm | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8 | 2.56 | 65 mm | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9 | 2.95 | 75 mm | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10 | 2.95 | 75 mm | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12 | 3.94 | 100 mm | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15 | 4.72 | 120 mm | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18 | 5.71 | 145 mm | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20 | 6.30 | 160 mm | 1.5-3% | 31.3 | 69.0 | 85 |
30 |
