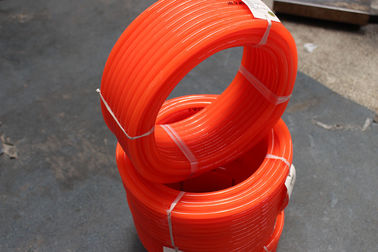

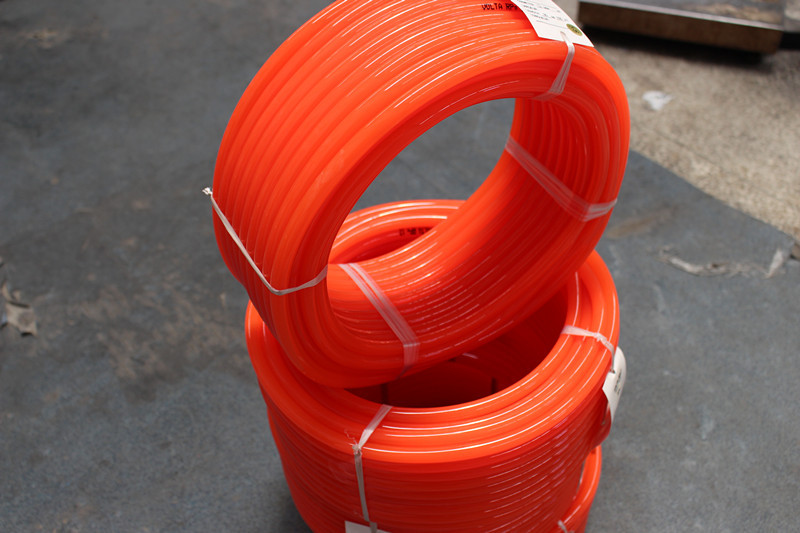

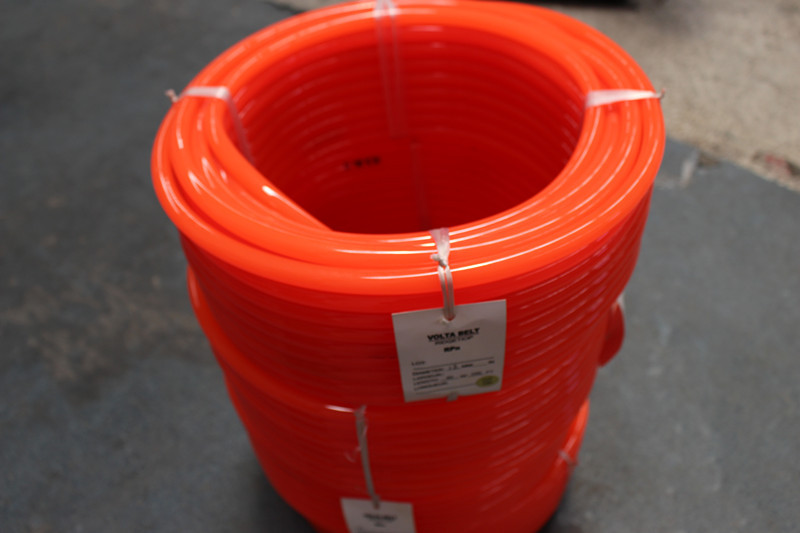

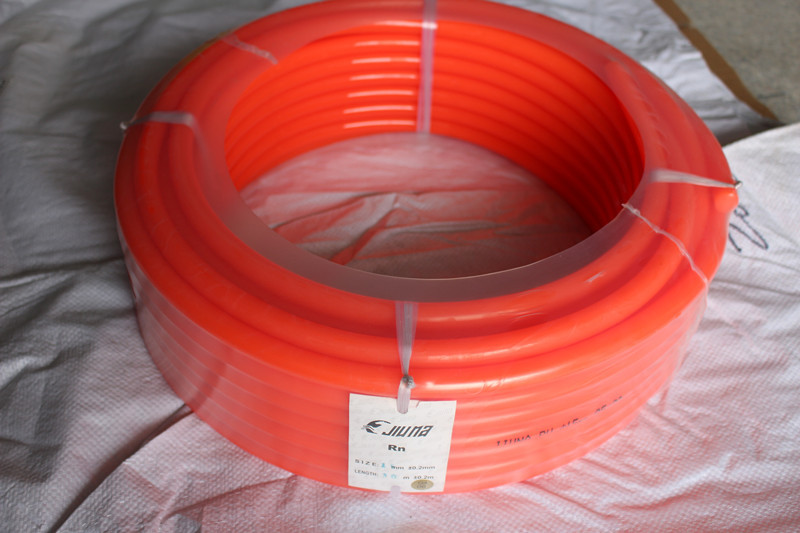

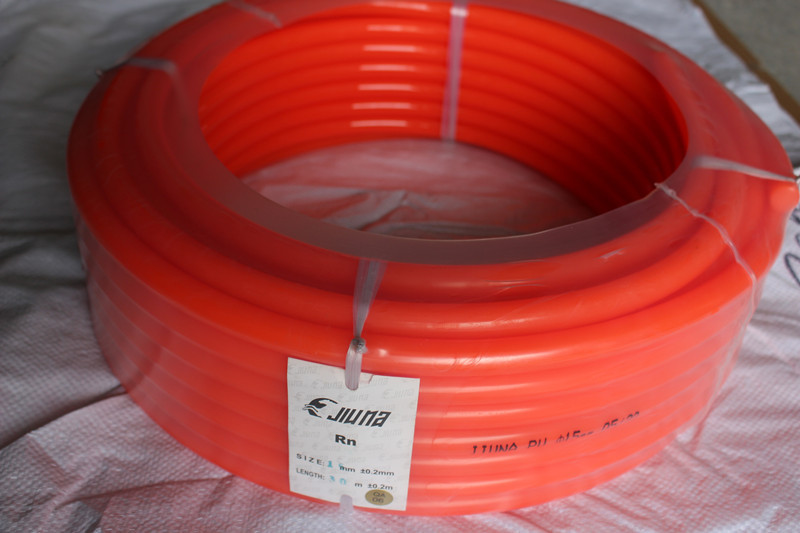

Weatherability Orange PU Round Belt Outstanding Abrasion Resistance

  • Weatherability Orange PU Round Belt Outstanding Abrasion Resistance
  • Weatherability Orange PU Round Belt Outstanding Abrasion Resistance
  • Weatherability Orange PU Round Belt Outstanding Abrasion Resistance
  • Weatherability Orange PU Round Belt Outstanding Abrasion Resistance
Place of Origin China
Hàng hiệu Jiuna
Chứng nhận ROHS
Model Number Diameter 15 mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment
Supply Ability 95.000 meters per Month

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
length 30 m/roll Tensile Strength 55N/mm2
Main function Drive transmission color orange
Model type 3,4,5,6,8,10,12,15,18mm Surface smooth
Làm nổi bật

pu round belt

,

pu extruded belt
Để lại lời nhắn
Mô tả sản phẩm

Weatherability Orange PU Round Belt Outstanding Abrasion Resistance



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
4mm 1.38 35 1.5-3% 1.2 2.7 85 200
5mm 1.57 40 1.5-3% 2.0 4.3 85 100
6mm 1.97 50 1.5-3% 3.2 7.0 85 100
7mm 2.17 55 1.5-3% 4.1 9.0 85 100
8mm 2.56 65 1.5-3% 5.0 11.0 85 100
9mm 2.95 75 1.5-3% 6.8 15.0 85 50
10mm 2.95 75 1.5-3% 7.7 17.0 85 50
12mm 3.94 100 1.5-3% 12.2 27.0 85 30
15mm 4.72 120 1.5-3% 17.7 39.0 85 30
18mm 5.71 145 1.5-3% 25.4 56.0 85 30
20mm 6.30 160 1.5-3% 31.3 69.0 85 30

polyurethane round belt of  introduction:

We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Service commitment:

“Quality for keeping going ,Credit to win the world”



Weatherability Orange PU Round Belt Outstanding Abrasion Resistance 0Weatherability Orange PU Round Belt Outstanding Abrasion Resistance 1
