Thông tin chi tiết sản phẩm:
Thanh toán:
|
| material: | pu | hardness: | 85A |
|---|---|---|---|
| color: | green orange red | export port: | shanghai |
| longth: | 30m /roll 50m /roll 100m / roll 200m/roll | radius of gyration: | 20mm-160mm |
| Điểm nổi bật: | pu round belt,pu extruded belt |
||

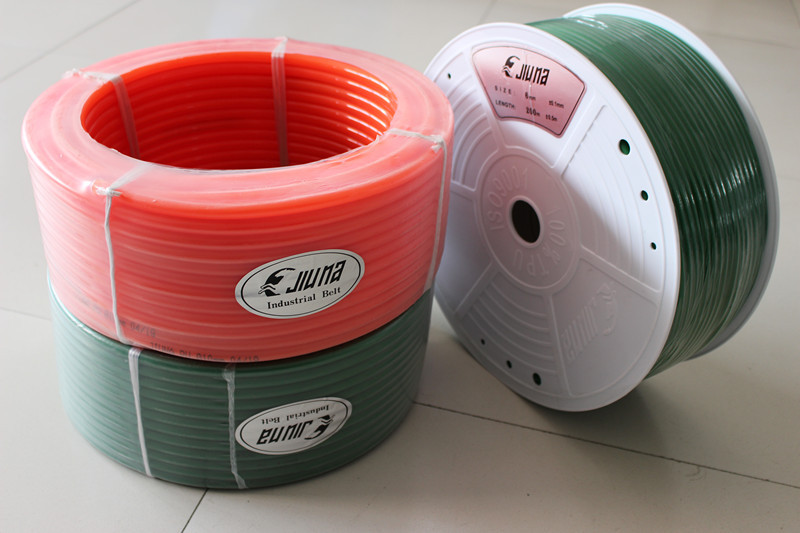

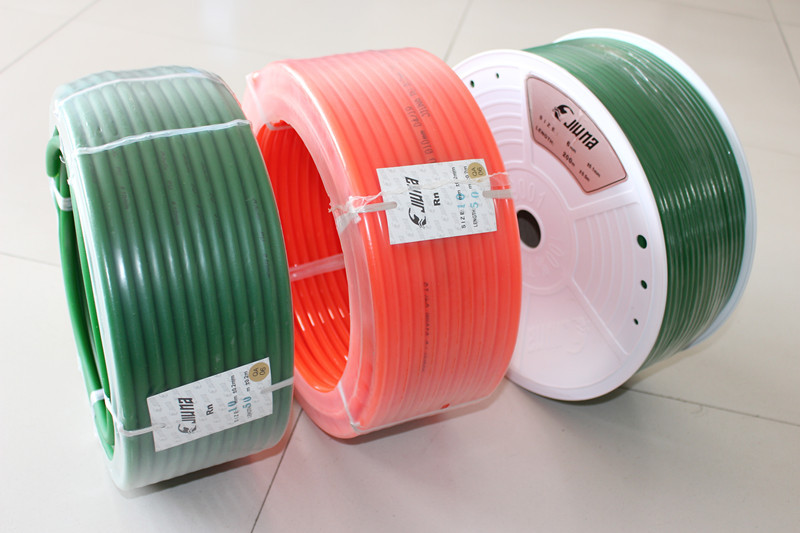

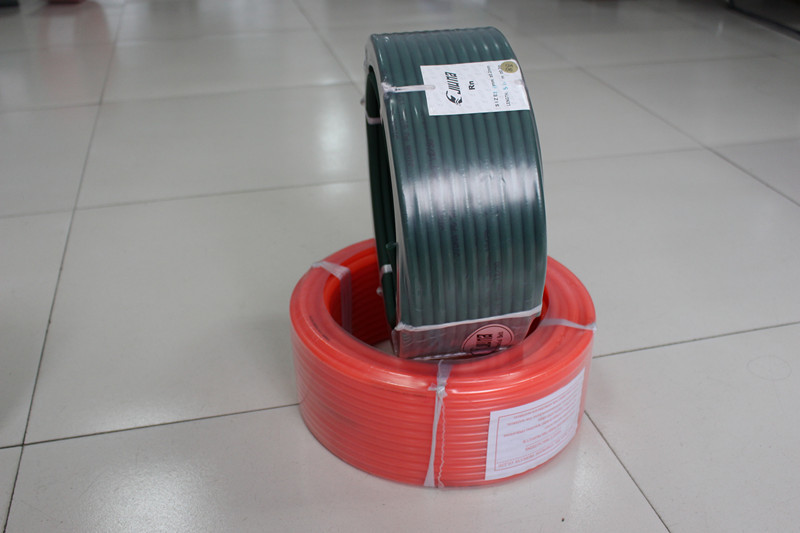

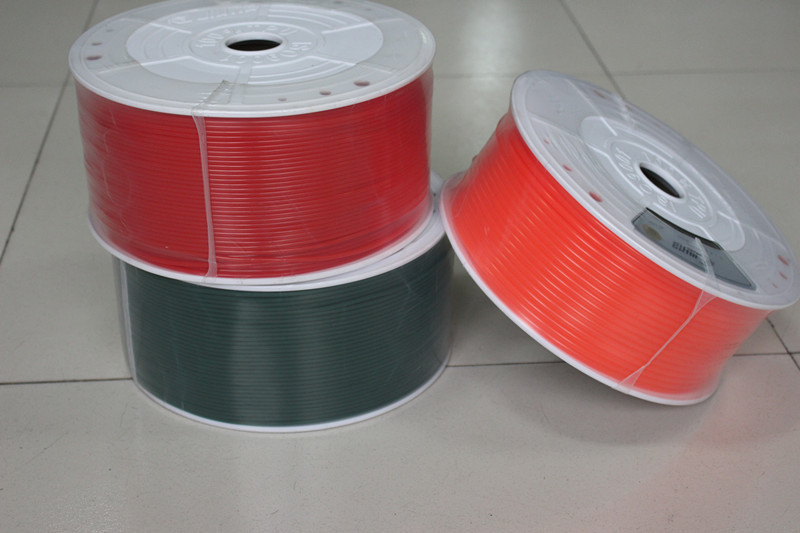

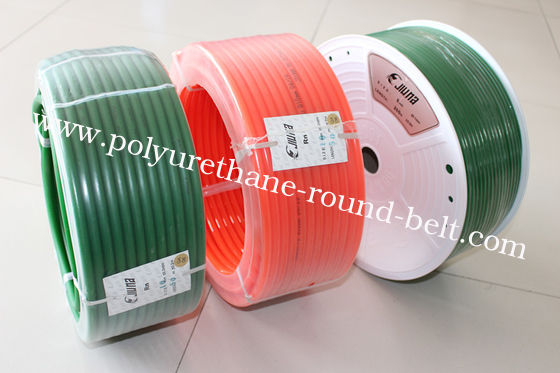

Transmission PU Rough Round Belt ; Polyurethane Round Belt, PU Smooth Round Belt, PU Rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries,
especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness.
They are used widely.
PU Round belt with reinforcement
We offer a complete line of Polyester and Polyurethane Round belts for use in transmission industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 3 |
