Transmission belt Polyurethane Round Belt PU smooth supplier

Trung Quốc Wuxi Jiunai Polyurethane Products Co., Ltd Chứng chỉ
Trung Quốc Wuxi Jiunai Polyurethane Products Co., Ltd Chứng chỉ
Customer satisfaction products , good service !

—— Mr. Alcioni possamai

we are very impressed with the quality of the belts you produced.

—— Mr.Mike

your products are very popular in my markets.

—— Mr. jone

Tôi trò chuyện trực tuyến bây giờ

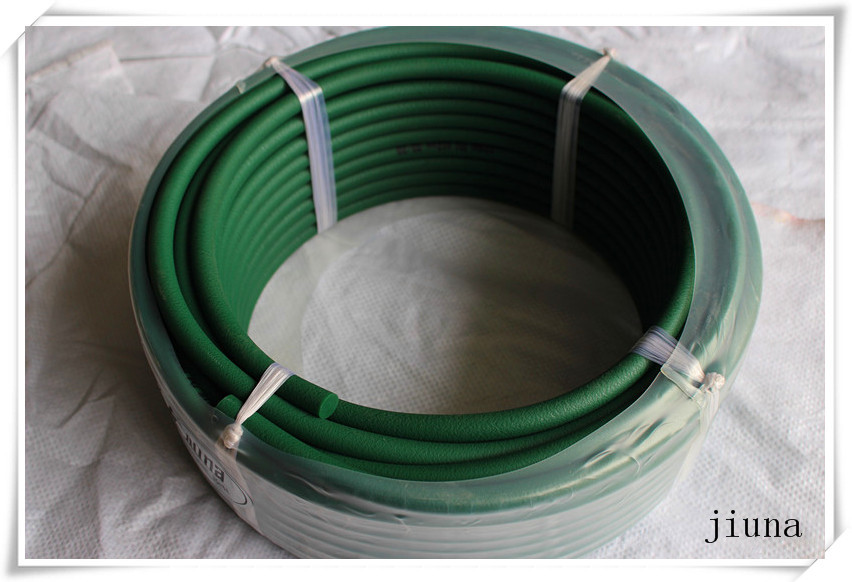

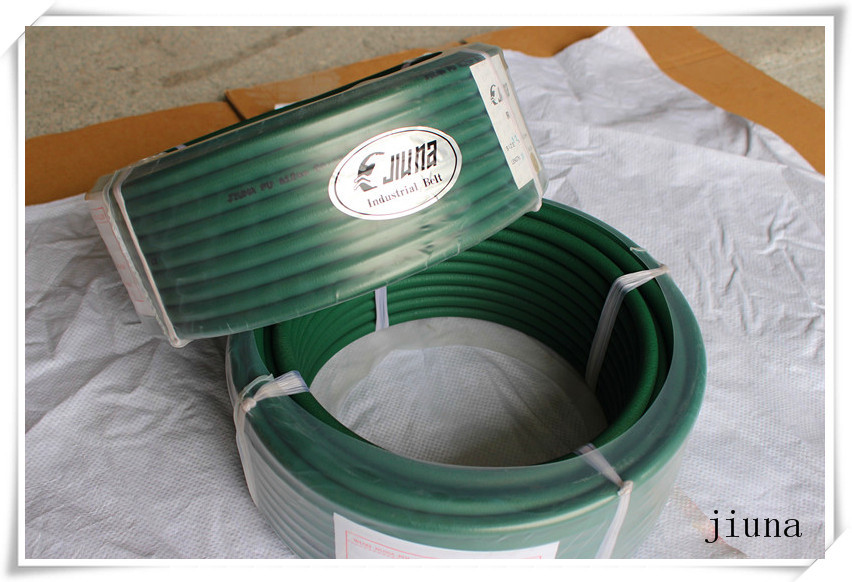

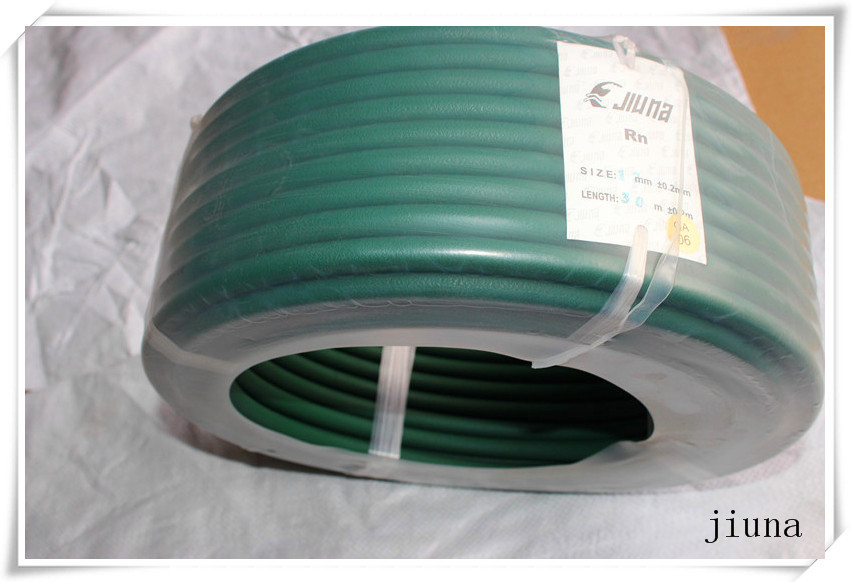

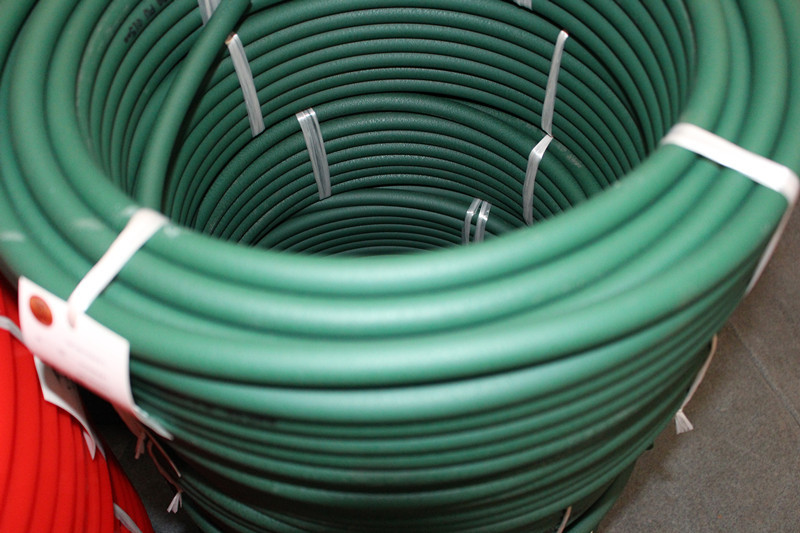

Transmission belt Polyurethane Round Belt PU smooth supplier

Transmission belt Polyurethane Round Belt  PU smooth supplier
Transmission belt Polyurethane Round Belt  PU smooth supplier Transmission belt Polyurethane Round Belt  PU smooth supplier Transmission belt Polyurethane Round Belt  PU smooth supplier Transmission belt Polyurethane Round Belt  PU smooth supplier

Hình ảnh lớn :  Transmission belt Polyurethane Round Belt PU smooth supplier

Thông tin chi tiết sản phẩm:
Place of Origin: china
Hàng hiệu: jiuna
Chứng nhận: ROHS
Model Number: dia 15mm
Thanh toán:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Chi tiết sản phẩm
hardness: 85A-90A stretching rate: 1.5-3%
material: PU color: green
dia: 2mm-20mm tensile rate: 0.3-31.3KG
Điểm nổi bật:

pu round belt

,

pu extruded belt

 Green Polyurethane Round Belt PaIndustrial Transmission Conveyor
rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance, easy jointed and Other

characteristics. Widely used in textile, packaging, printing, machinery, electronic,
 glass, chemicals, ceramics and other industries, especially in the ceramic industry,
widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness.

They are used widely.
(7)V-belt Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance.
(8)Pentagon Belt, Septangular Belt, Suppergrip belt
Specifications include A, B, C three type.
(9)Hexagonal Belt
Specifications include C
(10)Parallel Belt
Including A, B two specifications

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30
