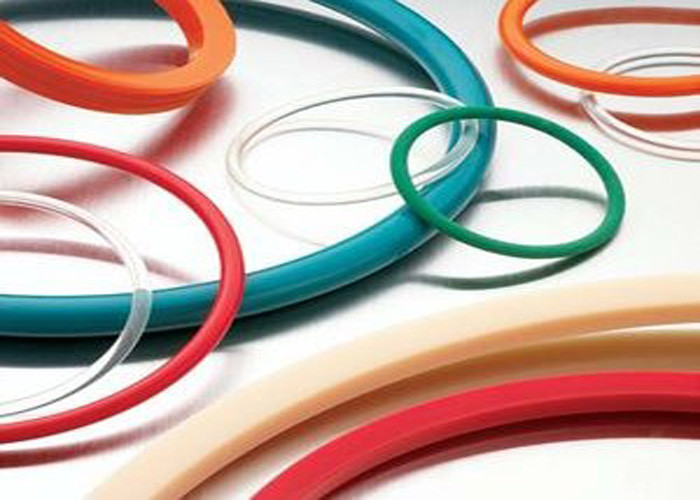

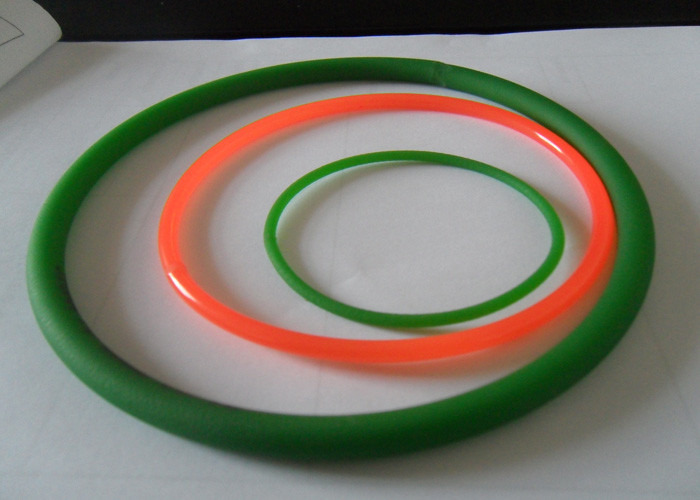

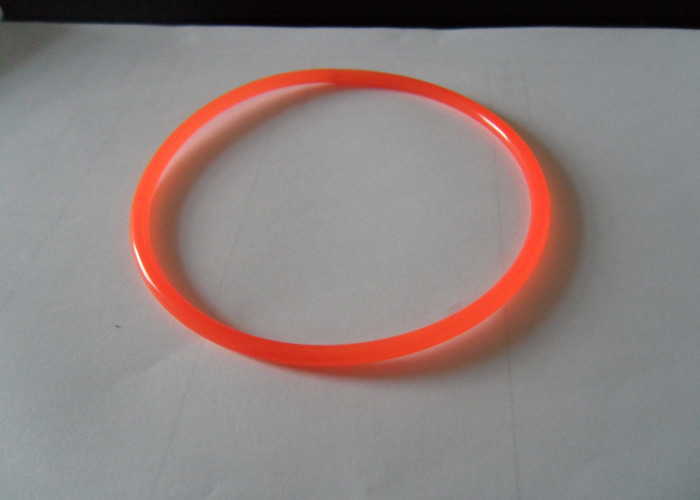

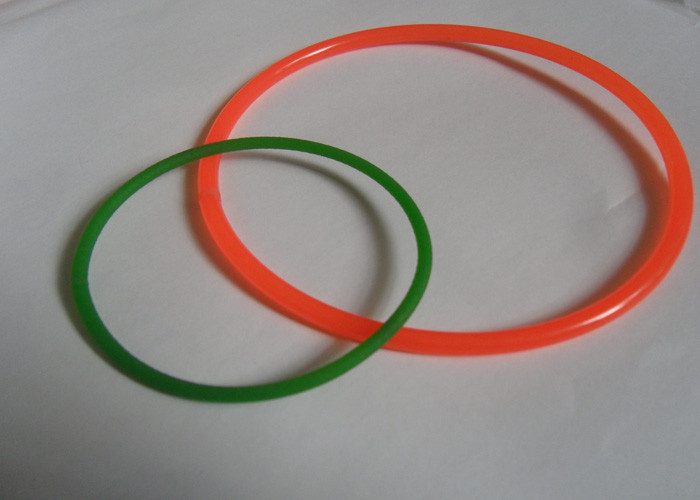

Polyurethane round belt and welding PU Sealing O-ring
Welding PU Sealing O-ring introduction:
We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. it can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is butt joint welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance, easy jointed and Other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7)V-belt Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance.
(8)Pentagon Belt, Septangular Belt, Suppergrip belt
Specifications include A, B, C three type.
(9)Hexagonal Belt
Specifications include C
(10)Parallel Belt
Including A, B two specifications
Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging,
printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper
and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission
lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type,
pentagonal belt normally used in the production line's corner.
Sealing O-ring specification as below sheet ,length is according to your request .
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30 |
