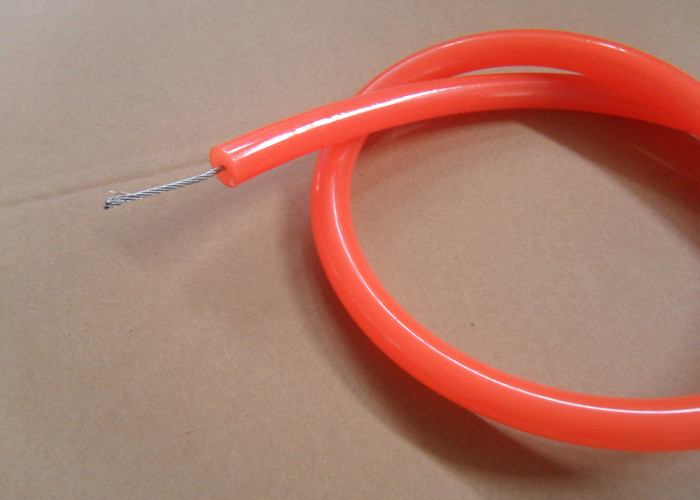

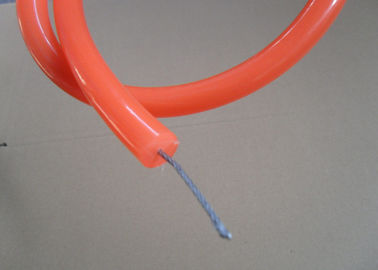

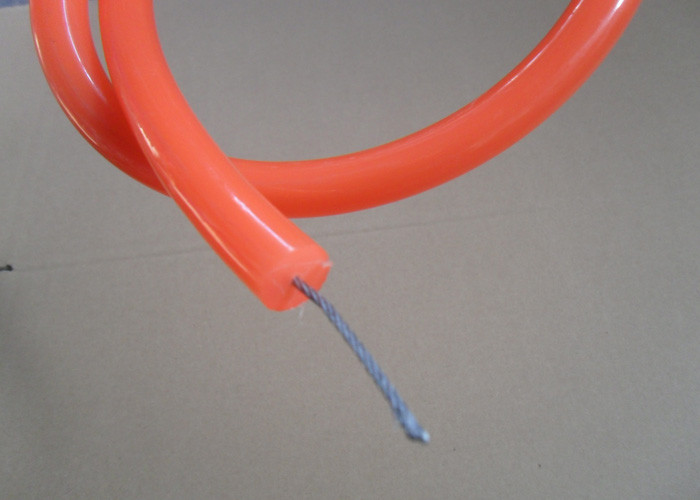

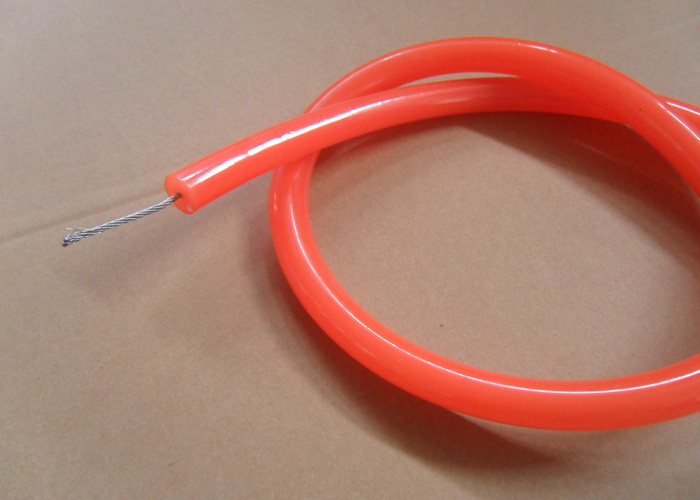

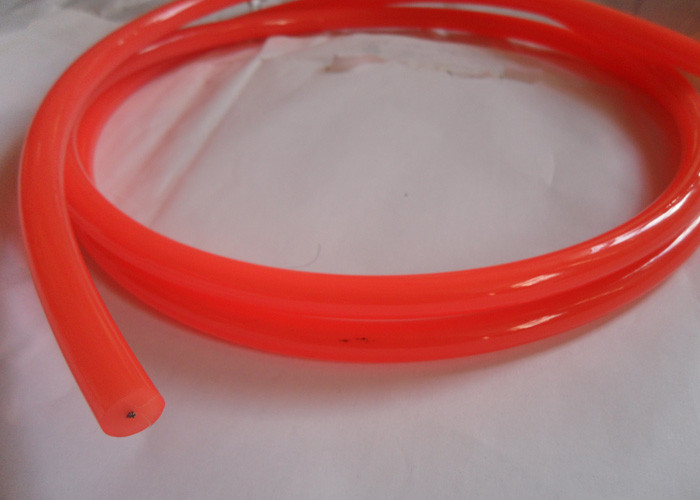

Reinforced Cord Kevlar Belts

Reinforced Cord Kevlar Belts
Reinforced Cord Kevlar Belts Reinforced Cord Kevlar Belts Reinforced Cord Kevlar Belts Reinforced Cord Kevlar Belts

Hình ảnh lớn :  Reinforced Cord Kevlar Belts

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Jiuna
Chứng nhận: ROHS
Model Number: Diameter 12mm ,12.5mm
Hardness: 90 shore A
Cord material: steel
Length: 30 meter /rolls
Thanh toán:
Minimum Order Quantity: 600 Meter
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, Western Union ,paypal ,L/C
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi City
Chi tiết sản phẩm
Điểm nổi bật:

Reinforced cord belt

,

polyurethane flat belt

OEM Custom-made Diameter 12mm,12.5mm steel cord belts Reinforced Cord



Characteristics of reinforced cord

1. Tensile strength achieves up to 300 KG ~600KG

2. Reinforced cord : nylon , kevlar ,steel

3. Hardness 85 shore A ~ 95 shore A,

4.High resilience ,low level of belt stretching .

5.Excellent wear and abrasion resistance

6.Resistance to oil. Grease, dirt and most chemicals

7.can be welding through overlap welding

8.color on your request



Items No. φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA (mm)

In

mm

%

Kg

Lbs

Shore (A)

Roll  (m)

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

12.5mm

4.19

120

1.5-3%

17.7

39.0

90

30






Application industries for steel cord belts (rope guided )

1.winder power industrial

2.General Constructions Engineer  .

3.Tower climbing

4.Cable car cabin

5.Help anchor device (Climb assist rope)

6.Traction rope (Rope guided )



Products introduction :

Hardness of Reinforced steel cord Polyurethane Belt is 85A, 90A or 95A polyurethane reinforced with polyester cords or tape for additional strength and reduced stretch, making it the ideal choice for heavy-duty conveying applications where loads cause non-reinforced belts to elongate and slip. Maybe require larger pulley diameter and the addition of take-ups to the drive system. Excellent resistance can be to a wide range of industrial chemicals and solvents.



Service commitment:

“Quality for keeping going ,Credit to win the world”
