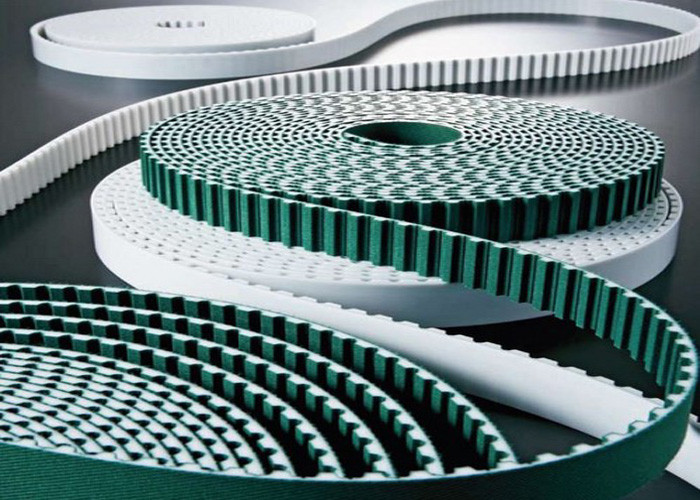

Industrial Anti UVA PU Polyurethane Timing Conveyor Belts / Polyurethane Timing Belt

large.img.alt
small.img.alt

Hình ảnh lớn :  Industrial Anti UVA PU Polyurethane Timing Conveyor Belts / Polyurethane Timing Belt

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: Jiuna
Chứng nhận: ROHS
Model Number: Specific requirement are available on request.
Thanh toán:
Minimum Order Quantity: 20 Piece
Packaging Details: Normal packing. Inner packing is plastic film .outer packing is carton . Or according to customers'
Delivery Time: Within 15 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 6000 piece per Month
Chi tiết sản phẩm
Điểm nổi bật:

Reinforced cord belt

,

polyurethane flat belt

Industrial Anti UVA PU Polyurethane Timing Conveyor Belts



PU Timing belt type :

1) Polyurethane Truly Endless Timing Belts,

2) Polyurethane Open End Timing Belts,Welded ended timing belt ,Flex timing belt

3) Polyurethane Double side timing belts,

4) Jointed/welded Pu Timing Belts and special belts etc.



PU Timing belt Feature:

1)      material: polyurethane with steel or kevlar cord

2)      OEM, sample order

3)      competitive price

4)      Good anti-cracking performance.

5)      Anti Aging,Anti Hydrolyze ,Anti UVA,Anti-Ozone.

6)      Operating Temperature -30∼+80 the Max. degree within short time can up to +110

7)      Anti-oil and anti-ester, Anti acid. etc.



Timing Belt Application :

1. PU food grade industrialis conveyer Belt.

2. Applied to low-load synchronous hierarchical transmission,

3. Office automation systems and home appliance.



Technical Parameters:





WIDTH(mm)

Maximum Traction Force -OPEN(N)

Maximum Traction Force -Jointed Belt (N)

Maximum Traction Force -Endless Belt (N)

Belts Weight (kg/m)



25

6020

3010

5620

0.270

32

7400

3700

7150

0.350

50

12040

6020

11250

0.550

75

18050

9025

16100

0.800

100

25000

12500

22500

1.100

150

36400

18050

33200

1.600

200

49100

24550



2.13

Width Tolerance (mm)

±1.0

Thickness Tolerance (mm)

±0.45




Products introduction:

PU flat timing belt are made in thermoplastic polyurethane, With continuous spiral steel cords. There are especially suited for power synchronous and conveying with high speeds(up to 10,000RPM), The sizes we have for the Polyurethane Jointed/Welded timing belts are as follows: XL, L, H, XH, 3M, 5M, 8M, 14M, 20M, S3M, S5M, S8M, S14M, S20M, T2.5, T5, TT5, T10, T20, AT5, AT10, AT20 etc. The biggest width is 200mm.Reinforce cord can be made of steel cord or Kevlar cord.



Service commitment:

 “Quality for keeping going ,Credit to win the world”
