| Độ cứng: | 85 bờ A | Màu sắc: | Màu xanh lá cây đậm |
|---|---|---|---|
| Vật tư: | PU | chiều dài: | 30m / cuộn |
| kéo dài rete: | 1,5-3% | loại: | Đai tròn PU |
| Chức năng chính: | Truyền động, truyền động | Phương pháp kiểm tra: | Tiêu chuẩn DIN |
| Điểm nổi bật: | đai đùn pu,đai tròn màu xanh lá cây,đai polyurethane tròn độ cứng 80A |
||

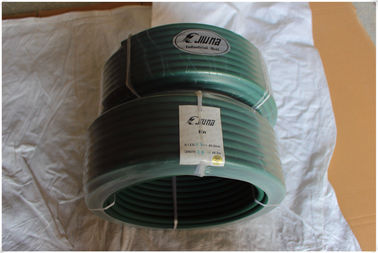

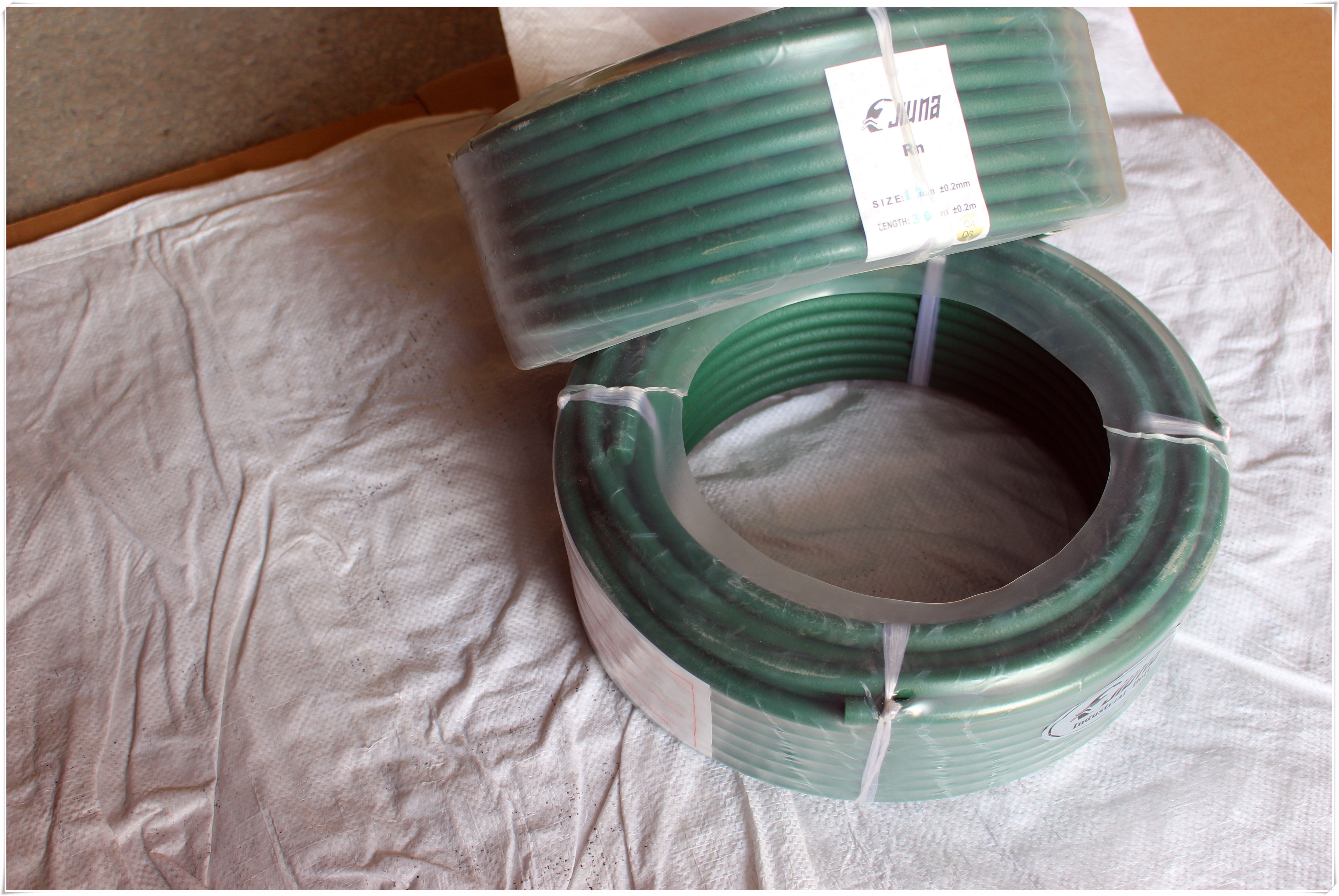

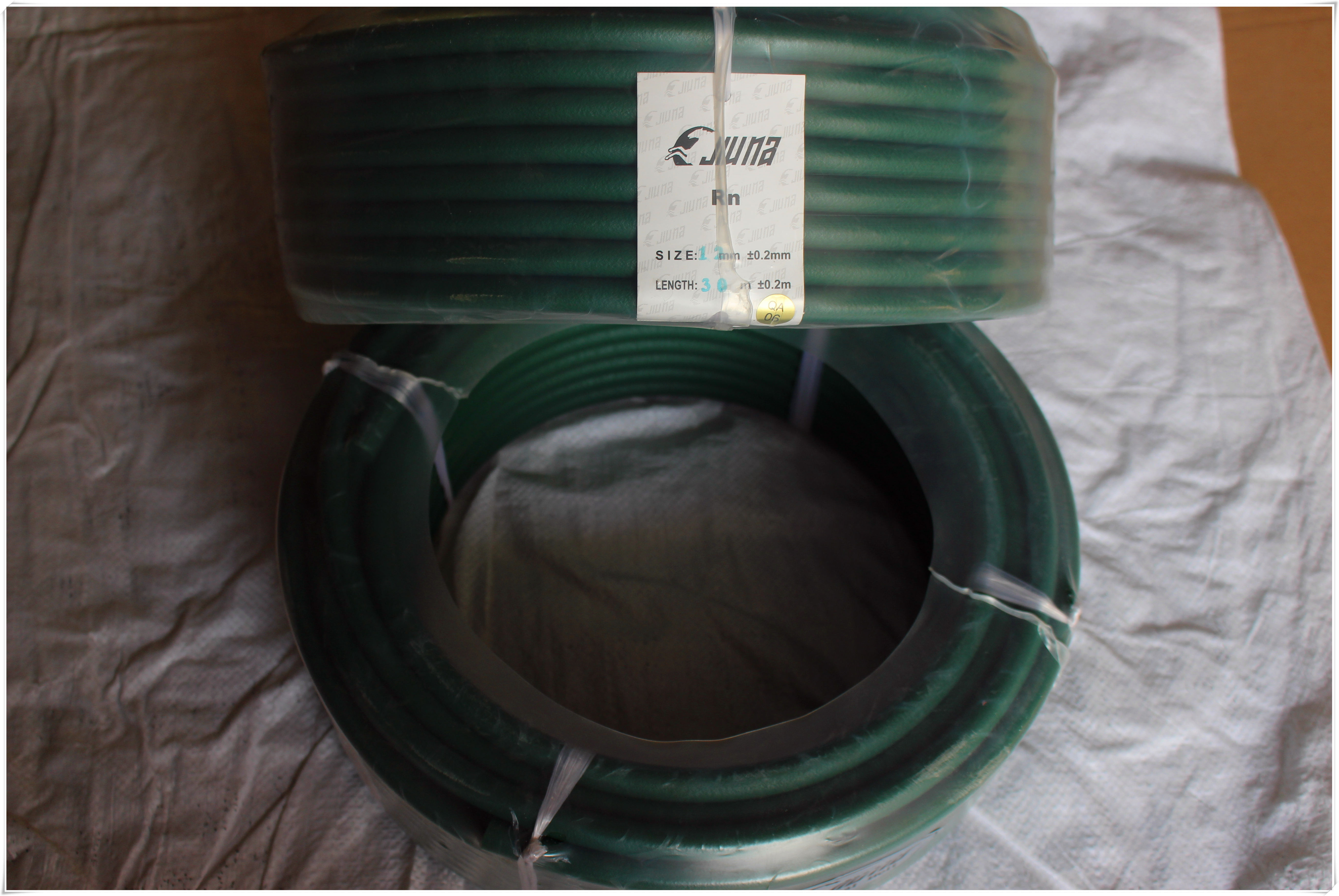

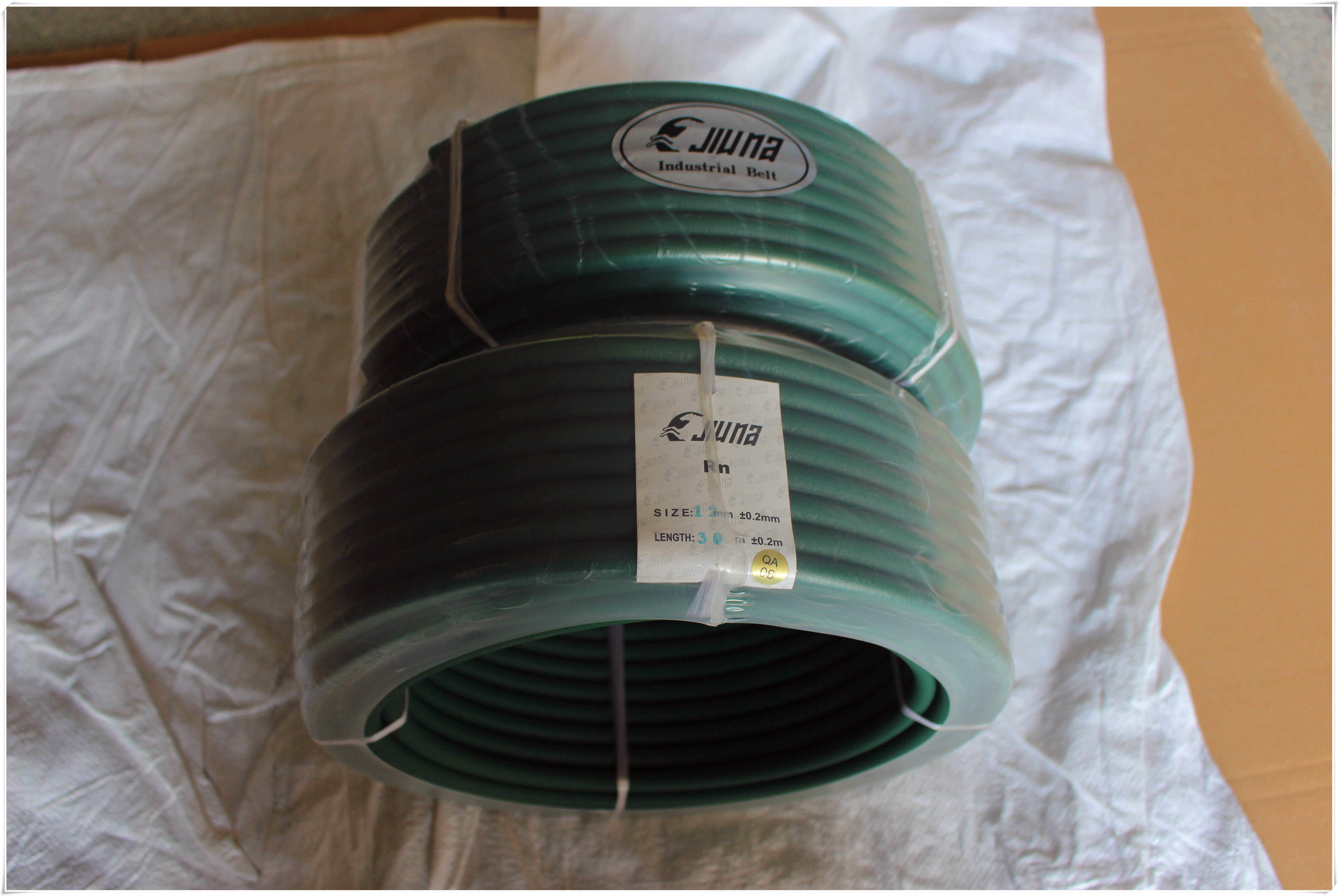

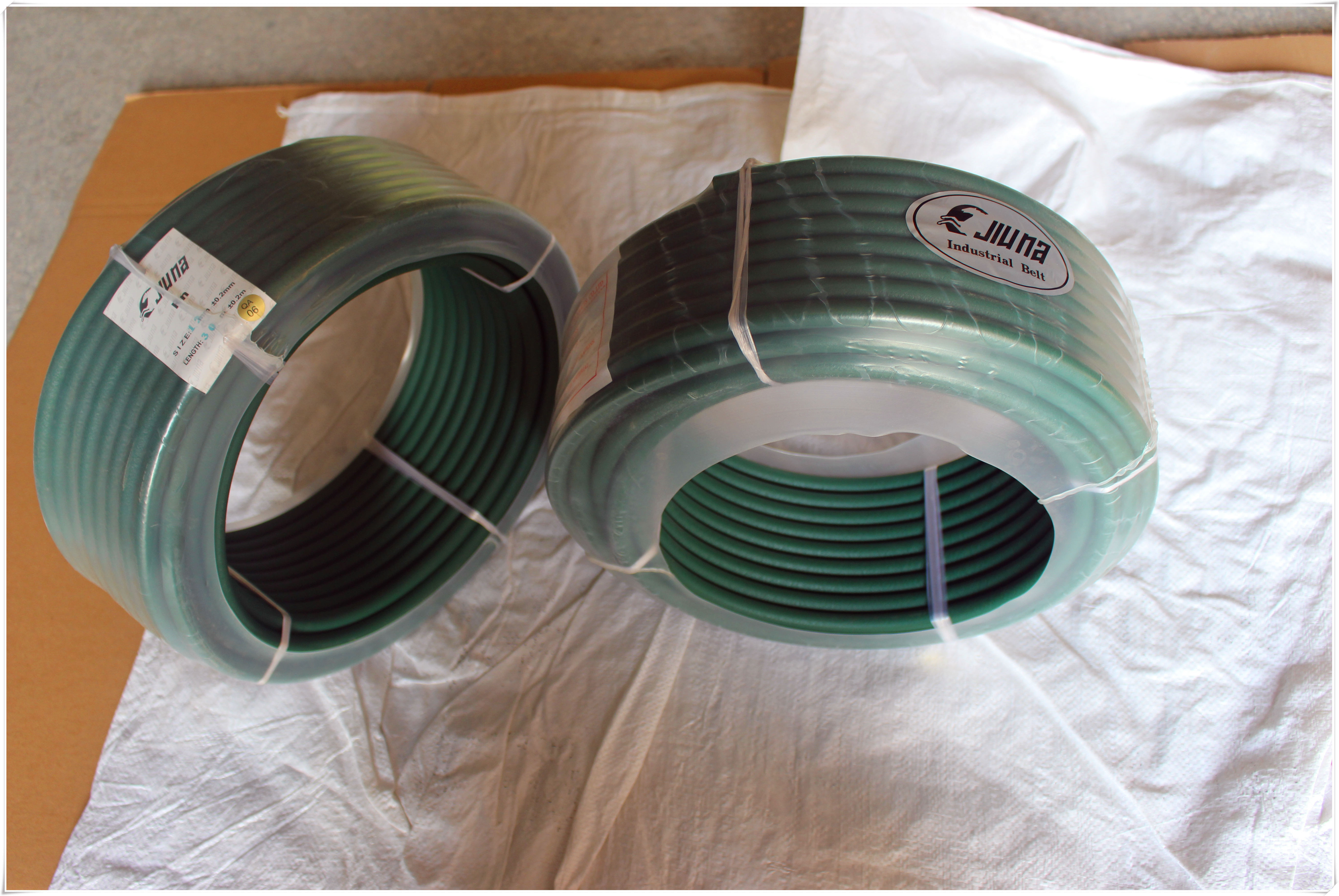

PU Round Conveyor Urethane Belts Industrial Transmission 80A
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
PU Cord Belt Application :
1. Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
9. Wall floor tile conveying industrial line
10. Ceramic industry line or polishing line
PU Round Belt(smooth/rough)
(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35℃ - 80℃
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and
other industries, especially in the ceramic industry, widely used in the facilities line the glaze,
polishing lines, and transmission line.
(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness.
They are used widely.
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400m |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400m |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200m |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100m |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100m |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100m |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100m |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50m |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50m |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30m |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30m |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 |
30m |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 |
30m |
