100m Length Rough Round Belting Diameter 6mm Used In Ceramics

100m Length Rough Round Belting Diameter 6mm Used In Ceramics
100m Length Rough Round Belting Diameter 6mm Used In Ceramics 100m Length Rough Round Belting Diameter 6mm Used In Ceramics 100m Length Rough Round Belting Diameter 6mm Used In Ceramics 100m Length Rough Round Belting Diameter 6mm Used In Ceramics

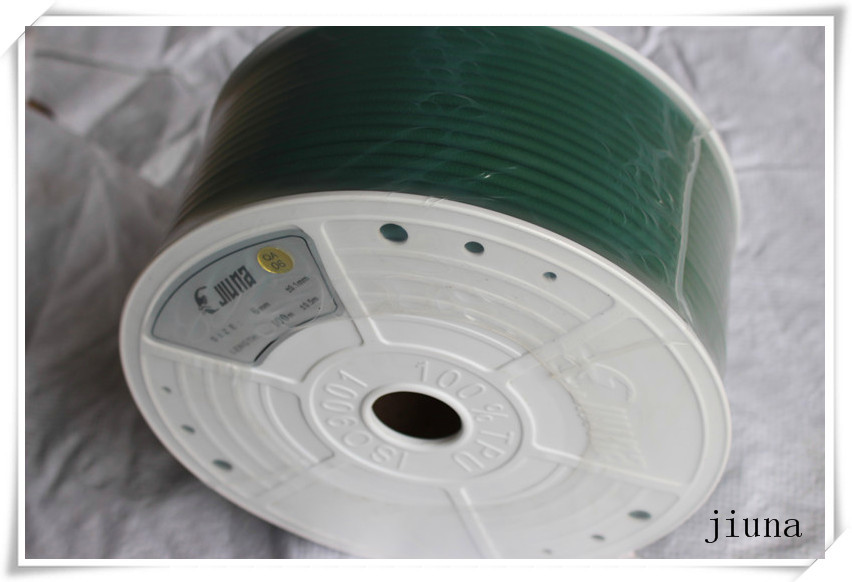

Hình ảnh lớn :  100m Length Rough Round Belting Diameter 6mm Used In Ceramics

Thông tin chi tiết sản phẩm:
Place of Origin: china
Hàng hiệu: jiuna
Chứng nhận: ROHS
Model Number: Diameter 2mm-20mm
Thanh toán:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100.000 meters per Month
Chi tiết sản phẩm
surface: rough color: green
diameter: 6mm Type: PU round belt
material: PU length: 100m/roll
Điểm nổi bật:

pu extruded belt

,

green round belt

100m Length Rough Round Belting Diameter 6mm Used In Ceramics
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
e.

Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30
