| material: | PU ,TPU | type: | PU endless round belt |
|---|---|---|---|
| surface: | smooth | hardness: | 85A-90A |
| Standard or Nonstandard: | Standard | heat-resistant: | -30 ℃~+80℃ |
| Tensile Strength: | 55N/mm2 | ||
| Điểm nổi bật: | pu round belt,pu extruded belt |
||
Endless Polyurethane Round Belt Smooth / Hardness Round Belts
Packaging Details:Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 7 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment

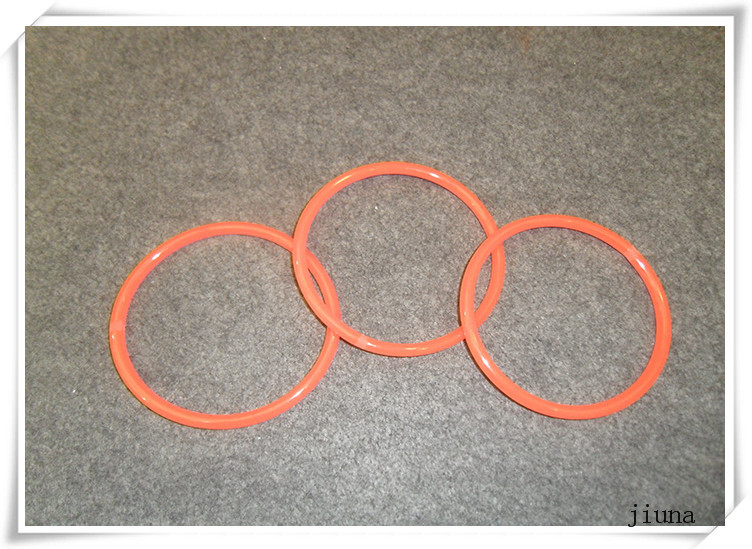

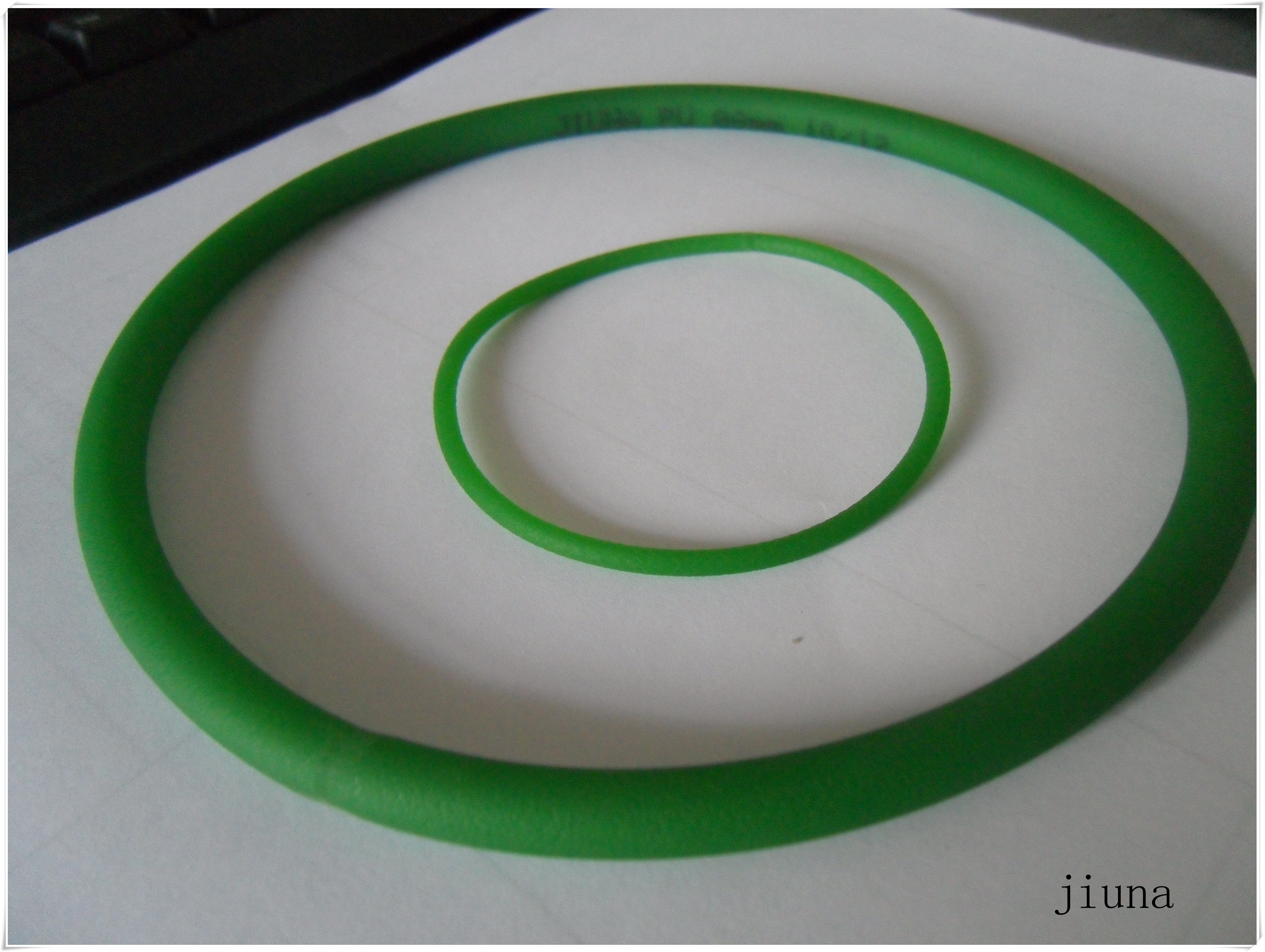

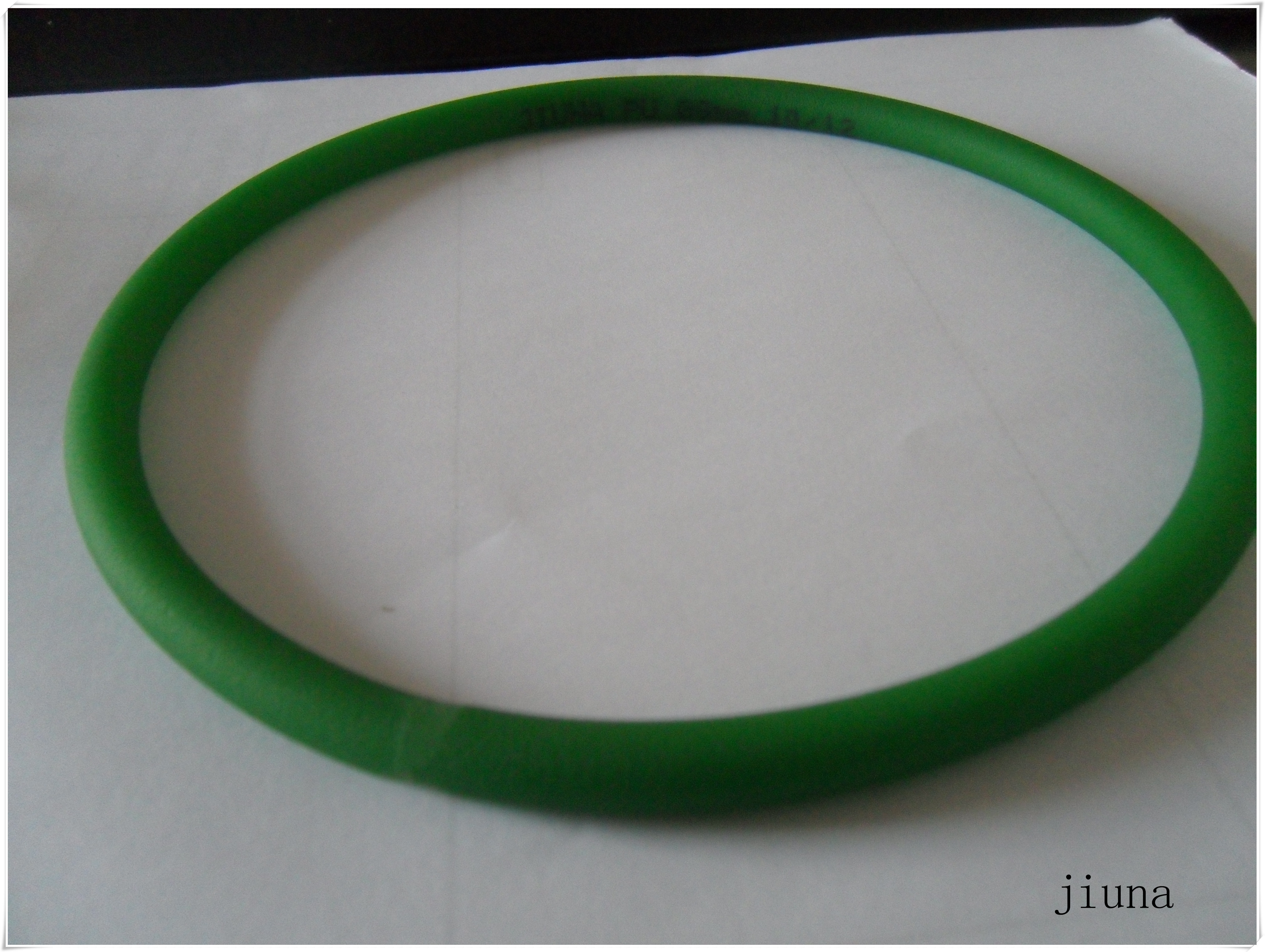

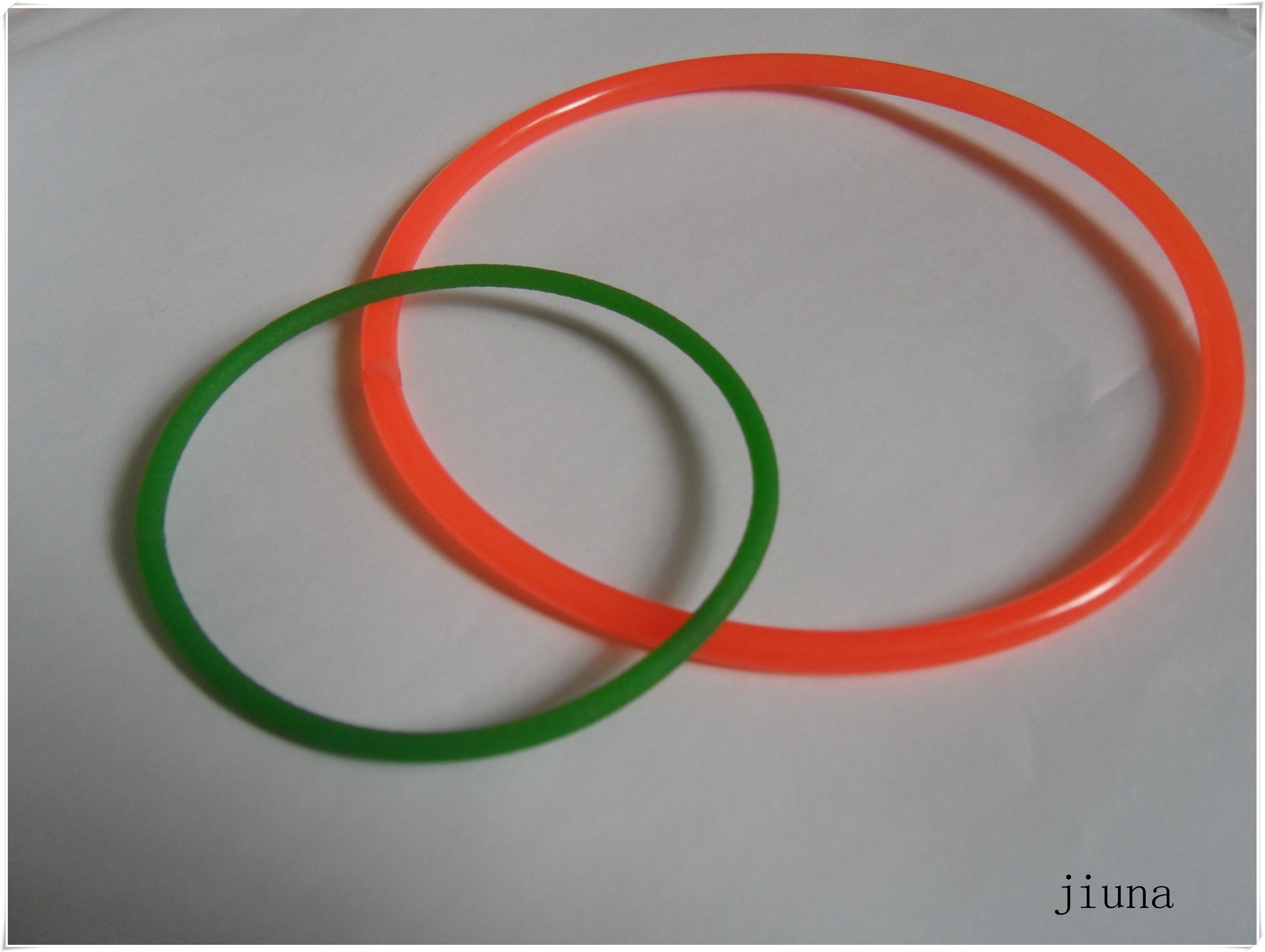

Polyurethane(PU) round belt are available with orange color smooth surface and green color rough surfaces and reinforced nylon, fibers, Kevlar and steel card .It also can jointed belt to o-ring. The diameter range from 2mm-20mm,we have professional worker can help you to jointed belt.
In addition, we also can supply a set of the connecting tools &accessories to you, it’s include to clamp, the electric ion and knife, connecting methods is butt joint and overlap joint.
Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
a: diameter: 2mm--30mm
b: surface: vivid
Polyurethane belting of introduction:
Special color round belt can be custom-made ,
Yellow and blue pearl round belt applied to sports leisure fitness industrial like skipping rope.
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.Polyester product
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
