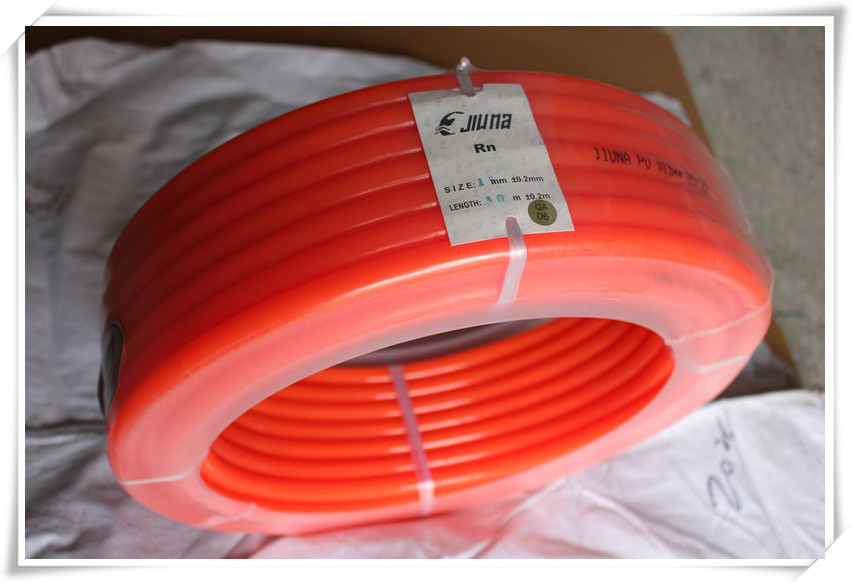

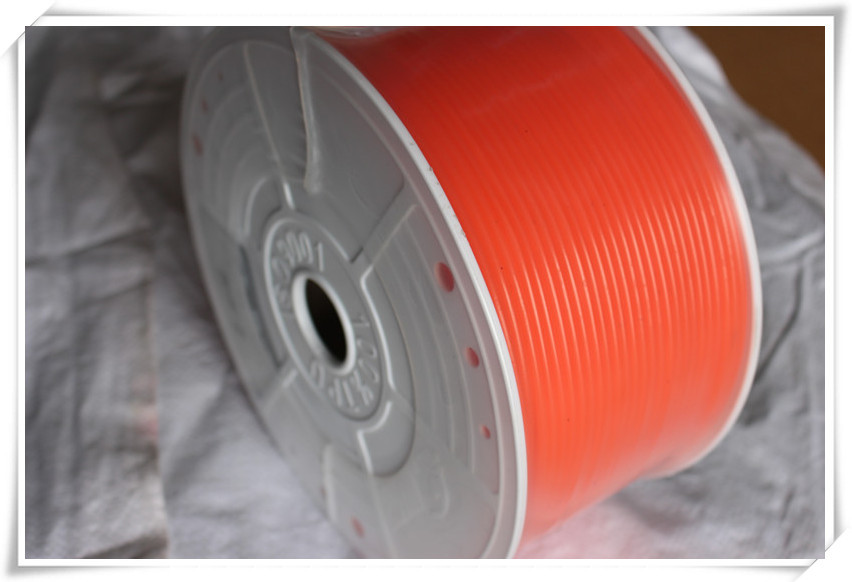

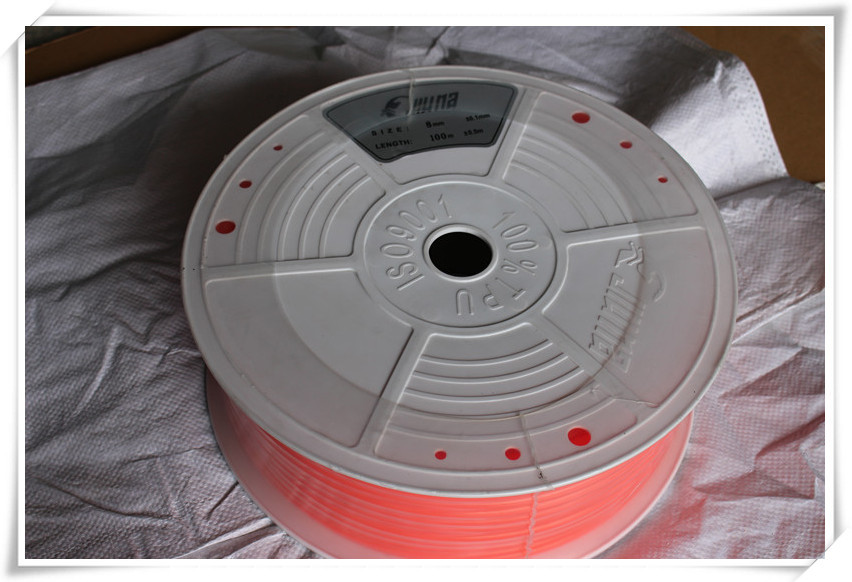

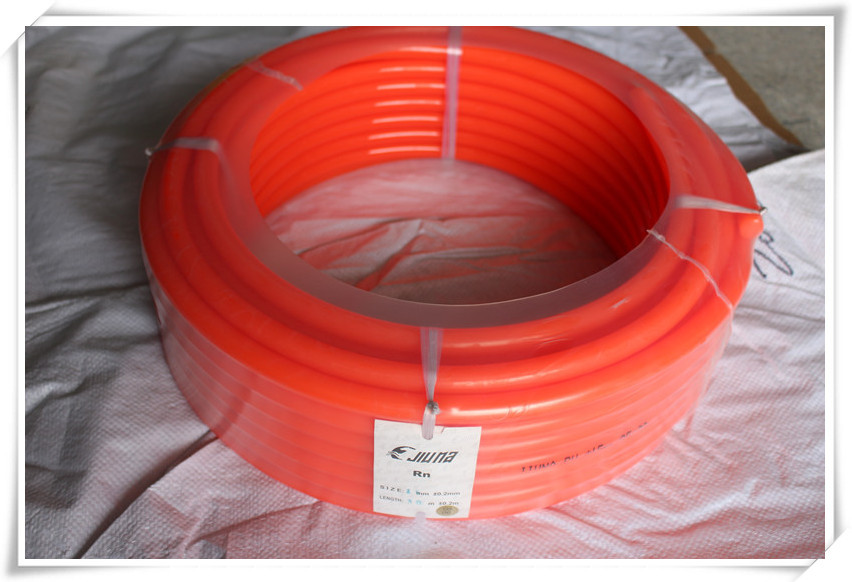

Polyurethane Ceramic Power Transmission Belts With High Stretch

Polyurethane Ceramic Power Transmission Belts With High Stretch
Polyurethane Ceramic Power Transmission Belts With High Stretch Polyurethane Ceramic Power Transmission Belts With High Stretch Polyurethane Ceramic Power Transmission Belts With High Stretch Polyurethane Ceramic Power Transmission Belts With High Stretch

Hình ảnh lớn :  Polyurethane Ceramic Power Transmission Belts With High Stretch

Thông tin chi tiết sản phẩm:
Place of Origin: china
Hàng hiệu: jiuna
Chứng nhận: ROHS
Model Number: diameter3-20m
Thanh toán:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability: 100,000,00 as per month
Chi tiết sản phẩm
color: orange hardness: 85A-90A
longth: 400/roll 200m/roll 100m/roll 50m/roll 30m/roll export port: shanghai of china
type: PU rough round belt material: PU
Điểm nổi bật:

pu extruded belt

,

green round belt

1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as
 textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY
in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
 a:  diameter: 2mm--30mm
b:  surface: vivid color with glossy surface; nea
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

t granule spread fairly for rough surface type.




Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled
 ( m )

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30



Polyurethane Ceramic Power Transmission Belts With High Stretch 0Polyurethane Ceramic Power Transmission Belts With High Stretch 1

Service commitment:
“Quality for keeping going ,Credit to win the world”
