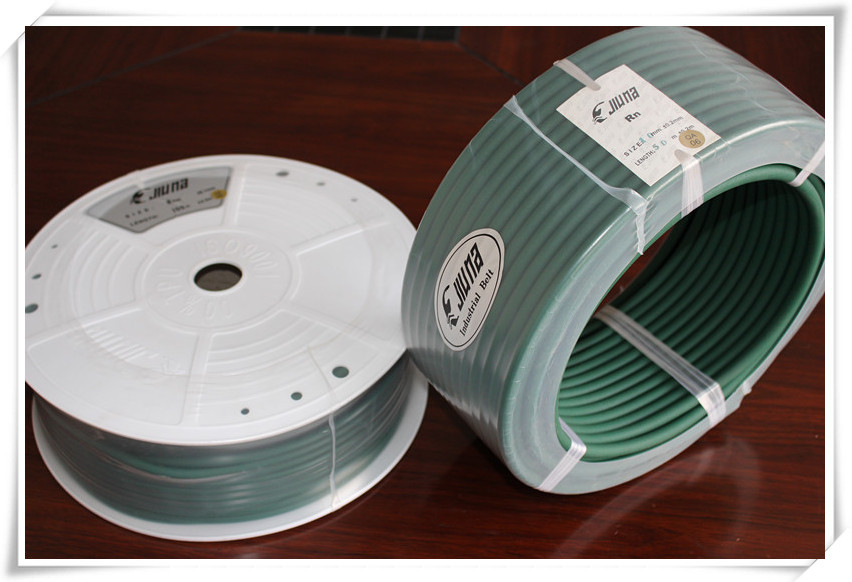

Industrial Power flat Fransmission belts abrasion resistance

Industrial Power flat Fransmission belts abrasion resistance
Industrial Power flat Fransmission belts abrasion resistance Industrial Power flat Fransmission belts abrasion resistance Industrial Power flat Fransmission belts abrasion resistance Industrial Power flat Fransmission belts abrasion resistance

Hình ảnh lớn :  Industrial Power flat Fransmission belts abrasion resistance

Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: jiuna
Chứng nhận: ROHS
Model Number: Diameter 2mm~20mm
Thanh toán:
Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton .
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability: 96.000 meters per Month
Chi tiết sản phẩm
tensile rate: 0.3kg-31.3kg color: green
Tensile Strength: 55N/mm2 material: PU
longth: 300m/roll 200m/roll 100m/roll 30m/roll hardness: 85A-90A
Điểm nổi bật:

pu round belt

,

green round belt

Industrial Power flat Fransmission belts abrasion resistance

Detailed Product Description:

PU Cord Belt Application :

1. Wall floor tile conveying industrial line

2. printing and packing machine

3. food & beverage processing

4. wood processing

5. paper processing

6. electronic

7. post service

8. tobacco transmission line

PU Cord Properties :

-Excellent abrasion resistance.

-Good resistance to fuel , oils and oxygen.

-Contains no plasticizer.

-Wide application temperature from -30℃~+80℃



transmission Round Belting Feature :



        1.       With excellent bend resistant

        2.       wear resistant

        3.       easy connected

        4.       it's not easy to be broken at low temperature





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)

2 0.79  20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30





Industrial Power flat Fransmission belts abrasion resistance 0Industrial Power flat Fransmission belts abrasion resistance 1
