| tensile rate: | 0.3kg-31.3kg | color: | green or as your require |
|---|---|---|---|
| stretching rate: | 1.5%-3% | material: | PU |
| longth: | 300m/roll 200m/roll 100m/roll | hardness: | 85A-90A |
| Điểm nổi bật: | pu round belt,pu extruded belt |
||

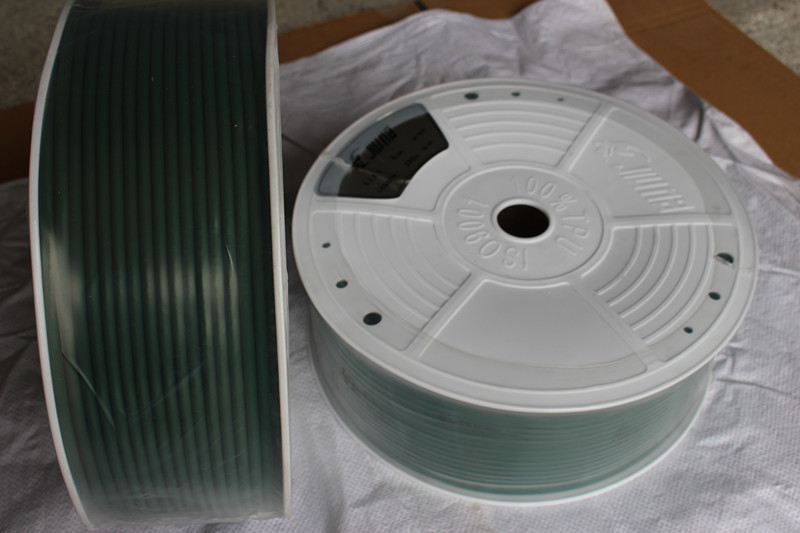

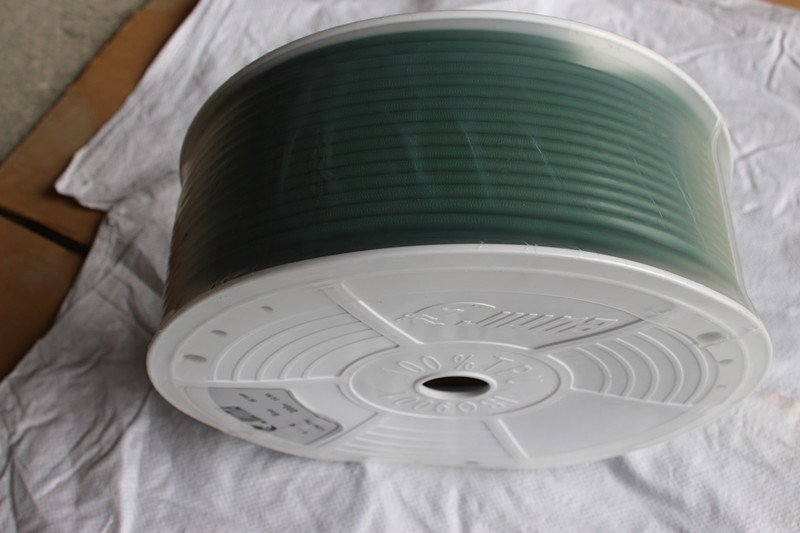

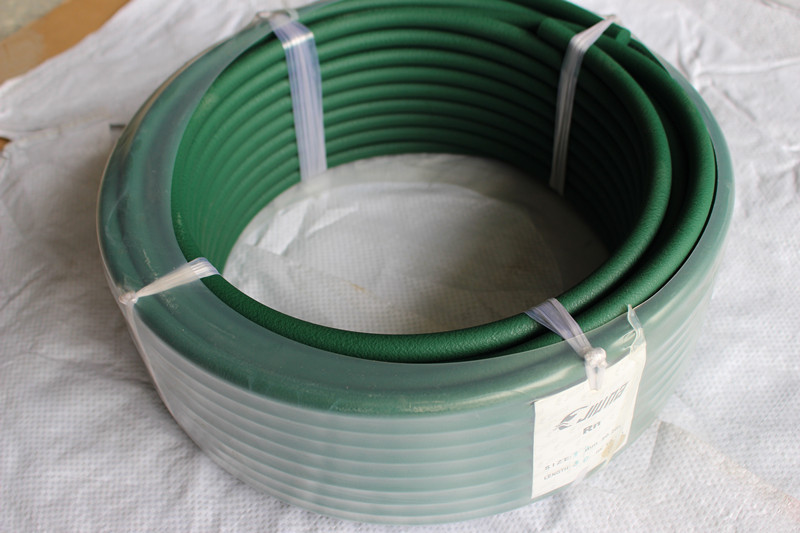

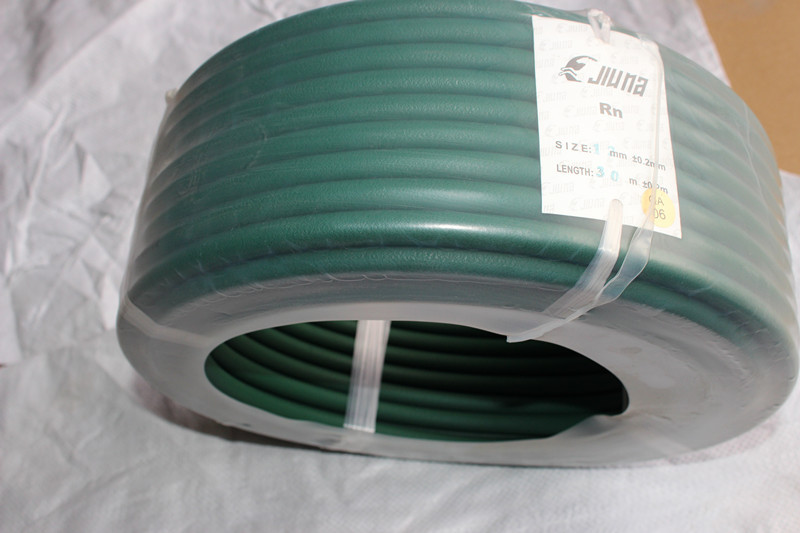

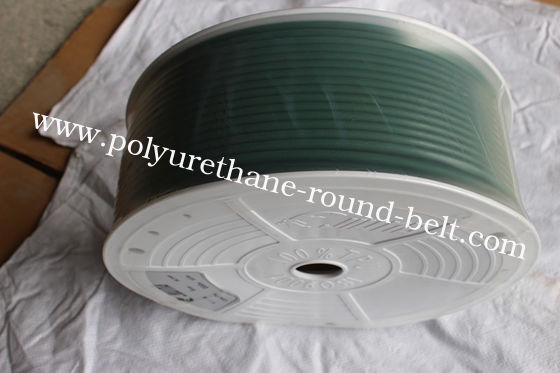

85A - 90A PU Round conveyor Belt Fuels Oxygen Glass For Industry
Detailed Product Description:
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
PU Cord Properties :
(1)Excellent abrasion resistance.
(2)Good resistance to fuel , oils and oxygen.
(3)Contains no plasticizer.
(4)Wide application temperature from -30℃~+80℃
1.24 hours technical support by email
2.Professional After-sales service
3. ISO9001:2000 and TS16949 certificated.
4. OEM available.
5. More than ten years of sales and manufacture experience
6.100% test for air pressure and inspection for product appearance before shipment.
7. Long lifespan, competitive price.
8. Good payment term.
9. Fast delivery.
10.Thread Standard: BSPP, BSPT, NPT, METRIC etc. Our products are exported to more than 30 countries in the whole world.
11. Our products are showed at international fair, such as Germany, Italy, America, Brazil, Dubai, Russia, Shanghai China fair etc each year.
12. Location advantage: Nearby Ningbo port, the second largest port in China, convenient transportation and low cost, and close to Shanghai, convenient for customers to visit our factory
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
DIA | In | mm | Stretching rate | Kg | Lbs | Hardness | Roll |
| 2 | 0.79 | 20 mm | 1.5-3% | 0.3 | 0.7 | 90 | 400 |
| 3 | 0.98 | 25 mm | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 4 | 1.38 | 35 mm | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5 | 1.57 | 40 mm | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6 | 1.97 | 50 mm | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7 | 2.17 | 55 mm | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8 | 2.56 | 65 mm | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9 | 2.95 | 75 mm | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10 | 2.95 | 75 mm | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12 | 3.94 | 100 mm | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15 | 4.72 | 120 mm | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18 | 5.71 | 145 mm | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20 | 6.30 | 160 mm | 1.5-3% | 31.3 | 69.0 | 85 | 30 |
